- MFD.BY:Denver
- DATE MFD:1994

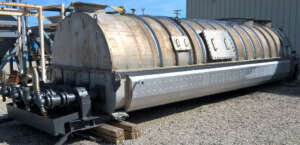

- TYPE:Holoflite Processor
- MODEL:Q2424-6-DED
- NUMBER SCREW(S):4
- DIAMETER-SCREW(S):24''
- LENGTH-SCREW(S):24'
- MAT'L CONSTRN-SCREW(S):316SS
- MAT'L CONSTRN-TROUGH:316SS
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SCREW(S):175# @ 650°F. MAWP. ASME N.BD.
- PRESSURE-TROUGH:3#/30"WC
- PRESSURE-JACKET:175# @ 650°F. MAWP. ASME N.BD.
- FLUID MEDIUM:Steam. 6000PPH approx.
- DRIVEN BY:7.5HP, 3/60/460v 1755 rpm, approx.

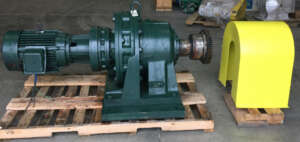

- DRIVEN VIA:SM Cyclo Gear, Sumitomo, mdl. M3265/19, 493:1, 493:1, 0.2-0.8 range, 228,000 In-Lb torque output.
- RPM-SCREW(S):0-2 approx. prior service. Speeds to 30 rpm possible.
- PRIOR SVC:2-20TPH solids, 4000PPH H2O evap. Approx.

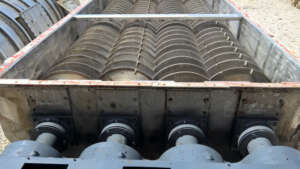

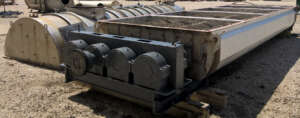

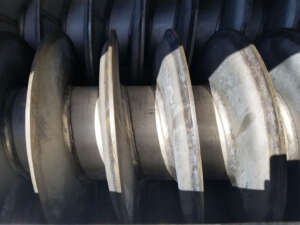

- COMMENTS:Heated screws and trough. 6" screw flite pitch, approx. 5/16" thick. 2B smooth finish, welds ground smooth, 1 mixing lifter per flite. Trough 6'9" wide, 2'6" deep, discharge 5' X 12". Rotary joints. Top vapor cover, 42"ID outlet. Steam snuffing connection
- SHIPPING SIZE-W X H X L:7'6"W X 9'9"H X 32'L
- APPROX. WEIGHT-LBS:40000#
