- MFD.BY:Bartlett-Snow
- DATE MFD:1980 approx.

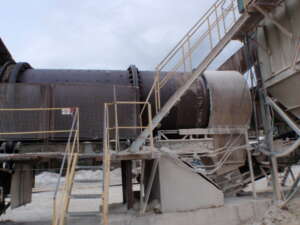

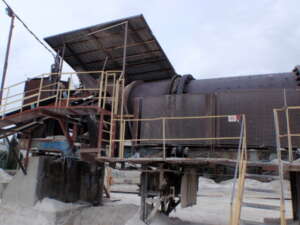

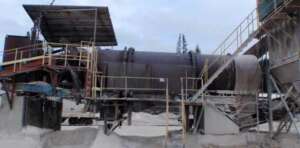

- TYPE:Kiln, horizontal rotary drum with refractory brick lining.
- DIAMETER:7'ID
- LENGTH:35'
- MAT'L CONSTRN-SHELL:CS
- MAT'L CONSTRN-LINING:Refractory.

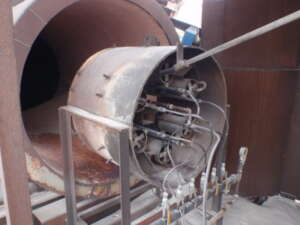

- COMBUSTION-BURNER:Natural Gas burners
- COMBUSTION-BLOWER:15HP approx.
- TEMPERATURE:2000°F operating temp. approx.
- DRIVEN BY:20HP electric approx.

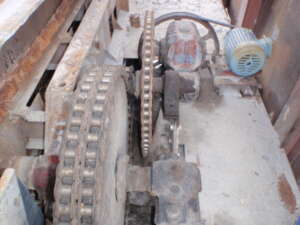

- DRIVEN VIA:Gear reducer through Bullgear and pinion drive.
- RPM:1 approx.
- CAPACITY:2-5 tph approx. dependent on product moisture & type/temp.

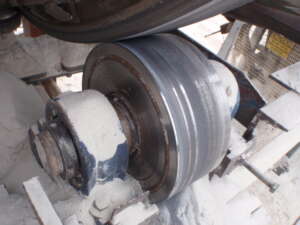

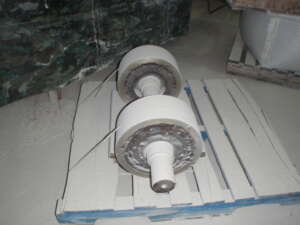

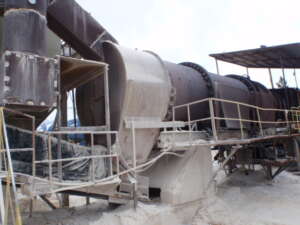

- COMMENTS:Installed, Support trunnions & rollers. Skid mounted. Feed & discharge hoods.
- SHIPPING SIZE-W X H X L:10'W X 10'H X 125'L
- APPROX. WEIGHT-LBS:70000#
- QUANTITY:1
