- MFD.BY:Heil
- DATE MFD:1980 approx.

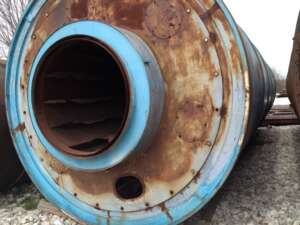

- TYPE:Indirect heat(hot air)rotary drum dryer. Three pass flow design w/internal flights, discharge tire.
- MODEL:SD 105-32 Triple Pass
- DIAMETER:10'6"
- LENGTH:32'

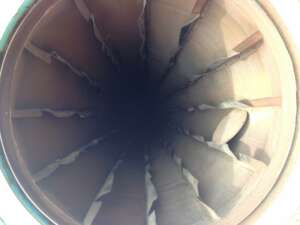

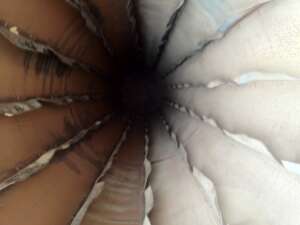

- SHELL INTERNALS:Lifters
- MAT'L.CONSTRN:CS
- COMBUSTION-BURNER:NA
- COMBUSTION-BLOWER:NA Requires 15HP, 40000CFM approx.
- TEMPERATURE:1100 DEG F approx.
- DRIVEN BY:NA Requires 15HP, 3/60/230-460 1760 RPM approx
- DRIVEN VIA:Chain & sprocket Bullgear/pinion via reducer
- RUNNING GEAR:2 sets trunnions & rollers. Chain and sprocket drive.
- CAPACITY:10TPH wet feed, 5TPH dry product
- PRIOR SVC:Alfalfa
- SHIPPING SIZE-W X H X L:13'W X 13'H X 50'L
- APPROX. WEIGHT-LBS:55000#
- QUANTITY:1
