1271006 - DRYER, ROTARY DRUM, 4' X 27', CS, GAS [1]

  • MFD.BY:Cedarapids or similar
  • DATE MFD:1980 approx.
  • TYPE:Horizontal rotary drum.
  • DIAMETER:4' OD [49" approx.] 7/8" thick, rolled and seam welded shell.
  • LENGTH:19'6" hot section, 27' o/all
  • SHELL INTERNALS:Flites/Lifters, 2" x 12" SS
  • MAT'L.CONSTRN:CS
  • COMBUSTION-BURNER:Gas.
  • TEMPERATURE:650 deg F approx.
  • DRIVEN BY:7.5HP motor, 3/60/230-460v 1175rpm, Fr 254T
  • DRIVEN VIA:Reducer 24:1, to chain sprocket 45" bull & 9" pinion. 120:1 total approx.
  • RPM:1-10 variable

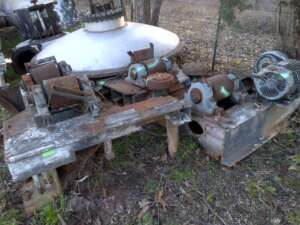

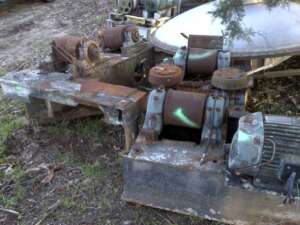

  • RUNNING GEAR:Drum Trunnions, feed end 8" thick, discharge end 3" thick x 8" wide tires. Support rollers 10"dia x 10" long. Thrust rolls 12"dia x 3" approx.
  • CAPACITY:5TPH approx. depending on product
  • PRIOR SVC:Phosphates
  • COMMENTS:Discharge housing with burner. Feed end housing. Feed section alloy, 3/8" thick. No controls. Drum 7/8" thick. Possibly HT material tbd. Refurbishing available, skid mount with burner controls, insulation. External shroud and indirect firing optional. Exh
  • SHIPPING SIZE-W X H X L:7'W X 8'H X 30''L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
