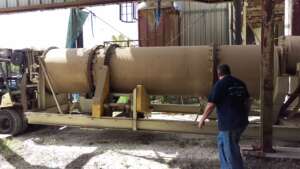

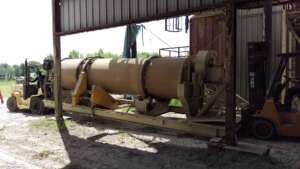

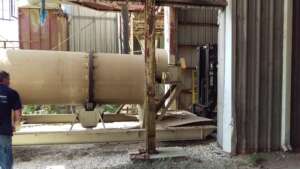

1270979 - DRYER, ROTARY DRUM, 4'6'' X 20', CS, GAS [1]

  • MFD.BY:Cedarapids [tbc]
  • DATE MFD:1980 approx.
  • TYPE:Horizontal rotary drum.
  • DIAMETER:4'6"
  • LENGTH:20'

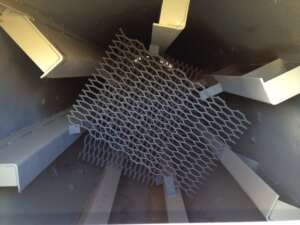

  • SHELL INTERNALS:Flites/Lifters
  • MAT'L.CONSTRN:CS

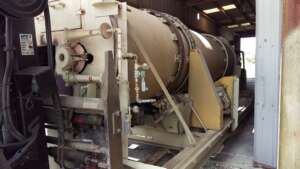

  • COMBUSTION-BURNER:Nat Gas. 2 @ Ransome Torch & Burner mdl. S12SO w/V-300 venturis, 3". ~300,000Btu/hr to 2.78MM Btu/hr each [0.6mm to 5.5mm btu/hr total]
  • COMBUSTION-BLOWER:Yes
  • DRIVEN BY:15HP motor, 3/60/230-460v, 1200rpm. 7" sheave.
  • DRIVEN VIA:Dodge gearbox, shaft mounted, 15:1, 19" sheave. 12" drive to 88" bull sprocket.
  • RPM:3
  • RUNNING GEAR:Drum Trunnions
  • CAPACITY:5000-20000PPH dependent on product, moisture, temp etc.
  • PRIOR SVC:Sand dryer. 150Deg F.

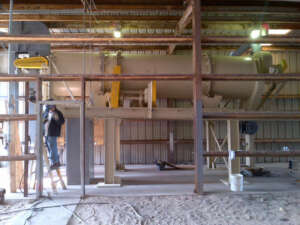

  • COMMENTS:Includes feed end housing, discharge end housing. Co-current [can be reversed]. Mounted on CS frame with 5ft high legs, portable. Discharge end Westinghouse size 713, style P29126 exhaust blower, 10hp, 3/60/1755rpm. Installed with controls, in service 201
  • SHIPPING SIZE-W X H X L:7'W X 10'H X 30'L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
