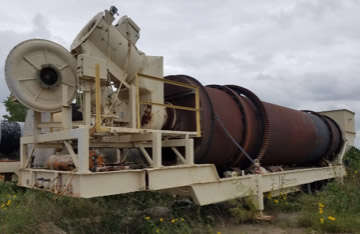

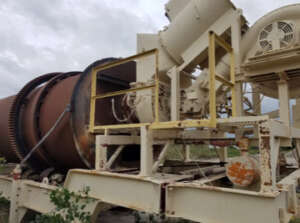

MODEL:Parallel flow [CoCurrent air flow/product flow]
DIAMETER:8'
LENGTH:32'
SHELL INTERNALS:Internal lifters length of shell.
MAT'L.CONSTRN:CS
COMBUSTION-BURNER:Gas fired. 110MM Btu/Hr. Turndown 60% approx. Hauck installed, probably needs replacement. Genco AF-60 available. Can also burn oil or Propane with mods. Smaller burner systems available if required, typical 20MM Btu/hr, gas fired including Gas train, 15-
COMBUSTION-BLOWER:100HP fan plus 25HP tertiary air blower.
TEMPERATURE:350Deg F approx.

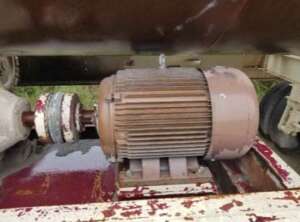

DRIVEN BY:75HP approx. 3/60/460V. New prior to shutdown.

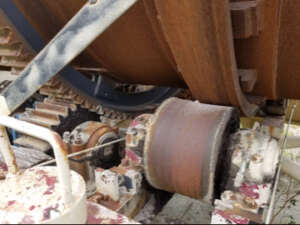

DRIVEN VIA:Pinion & Bull gear via inline reducer direct coupled to motor.
RUNNING GEAR:Trunnions & rollers.
CAPACITY:300TPH
PRIOR SVC:Asphalt, 5% moisture

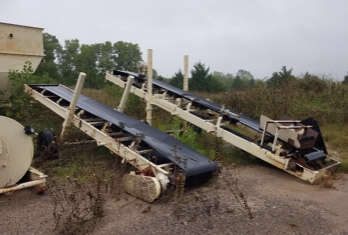

COMMENTS:Tri-axle trailer mounted, portable, jack stands. Reported in very good operating condition when shutdown to be replaced with a similar unit with additional features. Requires couple of new road tires before use on the road. 36" flat belt inclined conveyor
