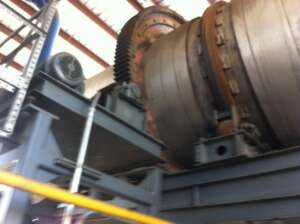

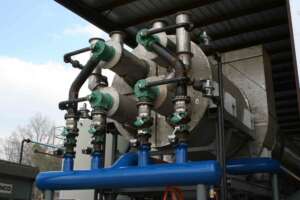

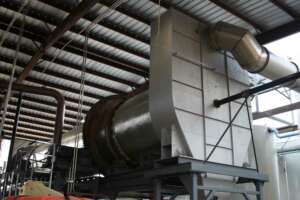

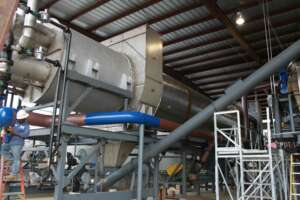

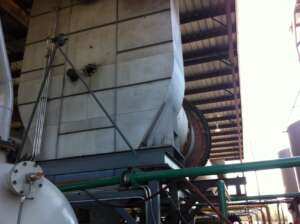

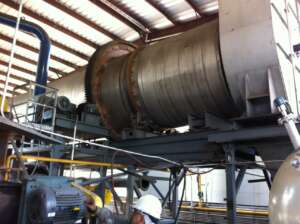

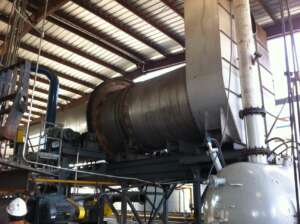

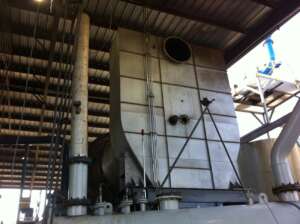

1270844 - DRYER, ROTARY DRUM, 9' X 60', CS, GAS [1]

  • MFD.BY:Vulcan
  • DATE MFD:Refurbished 2010
  • TYPE:Horizontal rotary drum
  • DIAMETER:9' approx.
  • LENGTH:60' approx.
  • SHELL INTERNALS:Internal lifters length of shell.
  • MAT'L.CONSTRN:CS
  • COMBUSTION-BURNER:Gas fired. 40MM Btu/Hr total, 4 @ 10MM BTU/HR ea.
  • COMBUSTION-BLOWER:Yes
  • TEMPERATURE:650Deg F approx.
  • DRIVEN BY:50HP
  • DRIVEN VIA:Gear reducer, Westinghouse, via Bull gear & Pinion
  • RPM:Variable
  • RUNNING GEAR:Trunnions & rollers. 30"dia x 13"wide. 13'3"OD Bullgear
  • PRIOR SVC:Dryer, Ag products, hydrocarbons.
  • COMMENTS:Dryer completely refurbished 2010, very limited service then shutdown. Packaged system installed under cover. 2010 all new controls and instrumentation. Run a few hours only. Counter-current, fired at discharge end. Can be reversed by adding feed section
  • SHIPPING SIZE-W X H X L:13'W X 13'H X 70'L
  • APPROX. WEIGHT-LBS:70000#
  • QUANTITY:1
