- MFD.BY:Blaw Knox
- DATE MFD:1987 approx.

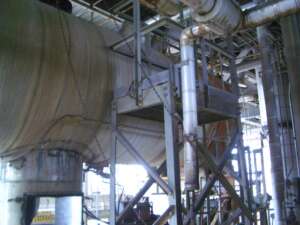

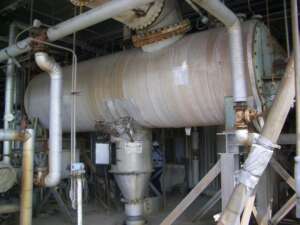

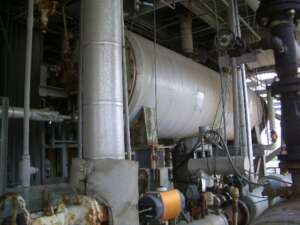

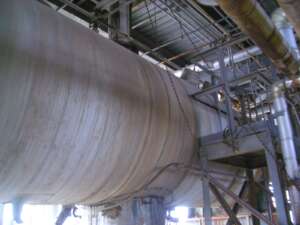

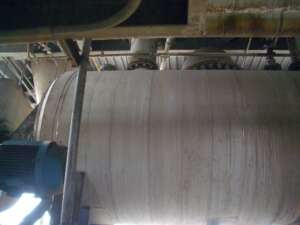

- TYPE:Rotary vacuum dryer. Stationary shell with rotating internal agitation.
- DIAMETER:5'
- LENGTH:20'
- CAPACITY:200 CF working, 390CF/ 11122L total approx.
- MAT'L CONSTRN-SHELL:316LSS approx 3/8" thick.
- MAT'L CONSTRN-JACKET:CS conventional
- MAT'L CONSTRN-AGIT:316SS
- PRESSURE-JACKET:40# @ 360°F. Approx.
- HEAT SOURCE:Steam

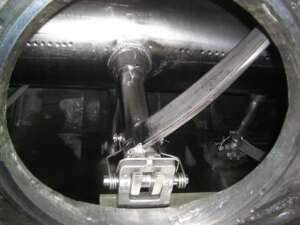

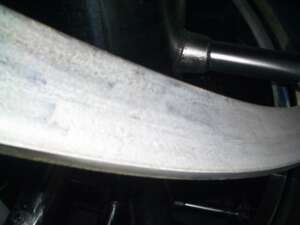

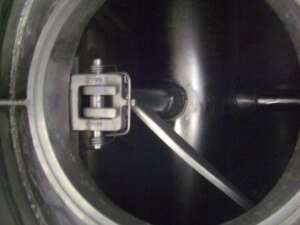

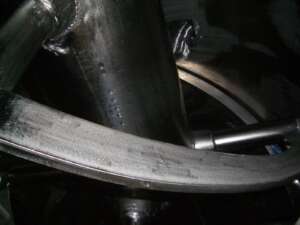

- AGITATION:Ribbon/Paddle. 10" dia. center shaft, rated 50# @ 300°F.
- CONNECTIONS:Top inlets; 30", 16"(2). Bottom discharge;16" approx.

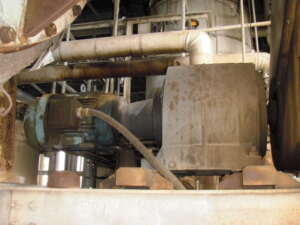

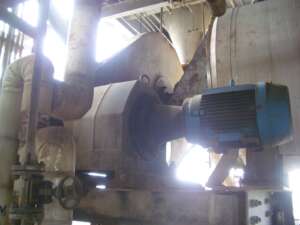

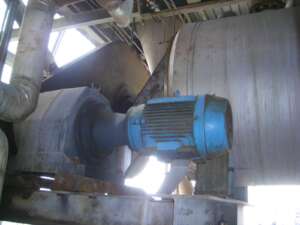

- DRIVEN BY:25HP motor, 3/60/208-220-440V, 1180 rpm. Approx.
- DRIVEN VIA:Cleveland gearbox. Chain & sprocket 5:1. Approx.
- AGITATOR RPM:1.6 to 3.4 approx.
- PRIOR SVC:Chemical duty.
- COMMENTS:10" dia. center shaft. Installed w/available condenser, dust collector, vacuum pump at extra cost.
- SHIPPING SIZE-W X H X L:6'W X 7'H X 25'L
- APPROX. WEIGHT-LBS:30000#
