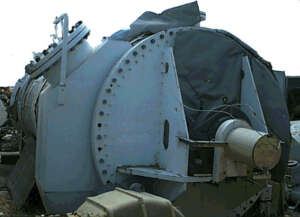

1086500 - DRYER, S-SCOTT CONTINUATOR, CRJ8-84-30, 84'' X 30', 304SS [1]

  • MFD.BY:Strong Scott, Divn Bepex
  • DATE MFD:1990
  • TYPE:Horizontal, cylindrical, continuous Vacuum dryer. Typically operation; A wet product is fed via a rotary airlock valve into one end of the dryer shell/body and is continuously conveyed through the drum via contoured paddles which are mounted onto the rota
  • MODEL:CRJ8-84-30
  • DIAMETER:84''
  • LENGTH:30'
  • MAT'L CONSTRN-SHELL:304SS
  • MAT'L CONSTRN-JACKET:304SS
  • MAT'L CONSTRN-ROTOR:304SS
  • JACKET:Dimple
  • PRESSURE-SHELL:15#FV @ 350°F
  • PRESSURE-JACKET:75#FV @ 350°F
  • DRIVEN BY:200HP motor, 3/60/460V, 1200 rpm.

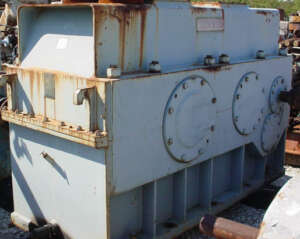

  • DRIVEN VIA:Lufkin gear reducer Mdl. T500C, 1200 rpm in, 14 rpm out.
  • ROTOR-RPM:14
  • CAPACITY:40000PPH. Varies w/product, residence time etc. I.e. 42,000pph dry plastic powder approx.
  • COMMENTS:Paddle type agitator. ½" shell wall thickness. 2 filters mounted on dryer. 550sf area. 1150CF capacity approx.
  • SHIPPING SIZE-W X H X L:8'W X 10'H X 35'L
  • APPROX. WEIGHT-LBS:70000#
