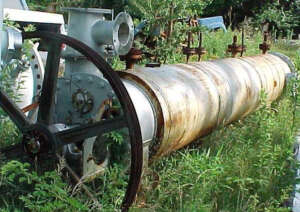

MFD.BY: Strong Scott, Div. Bepex. DATE MFD: 1974 TYPE: Horizontal,cylindrical,direct and/or indirect heated, jacketed vacuum dryer. Internal rotating element with variable pitch blades. MODEL: SJS24-14 DIAMETER: 24'' LENGTH: 14' s-s, approx. 17' over heads. MAT'L CONSTRN-SHELL: SS 1/2" thick MAT'L CONSTRN-JACKET: CS Approx. 1/2" thick MAT'L CONSTRN-ROTOR: SS JACKET: 27" dia. x 14' long PRESSURE-SHELL: Atm# @ 400Deg F PRESSURE-JACKET: 250# @ 400°F. CONNECTIONS: Top - 10"inlet, 10"[2] inspection, 2"[3] jacket. Bottom - 10" powder outlet. DRIVEN BY: 30HP motor, 3/60/440V, 1775 rpm. DRIVEN VIA: V-belt ROTOR-RPM: 188 approx. CAPACITY: 5000 PPH solids throughput Approx. COMMENTS: Shell approx. 1/2" thick. Heads approx. 1" thick. Heat transfer area 88 sq.ft approx.nOn 2 saddles. Motor at solids inlet end of unit. Rotor has 6 rows of adjustable blades/paddles. SHIPPING SIZE-W X H X L: 4'W X 6'H X 20'L APPROX. WEIGHT-LBS: 12000#
