- MFD.BY:Tamagawa & Kikai
- DATE MFD:1976

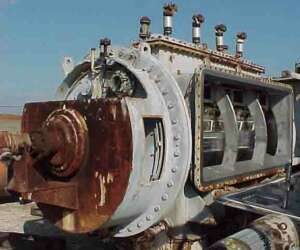

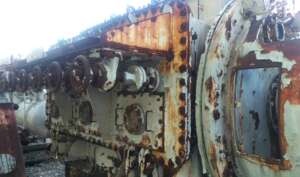

- TYPE:Single drum dryer. Heated rotating drum collects fluid product on drum surface. Product is dried and mechanically discharged from drum.
- DIAMETER-DRUM:50''
- LENGTH-DRUM:99''
- MAT'L CONSTRN-DRUM:SS
- MAT'L CONSTRN-TROUGH:SS
- MAT'L CONSTRN-HOUSING:SS
- HEAT SOURCE:Steam. Chilled water external jacket.
- FEED METHOD:Top roll feed applicator
- DISCHARGE:Knife, adjustable.
- ENCLOSURE:Vapor-tite, flanged bolted top cover. Internal FV @ 150Deg C. Jkt 45# [3Bar] @ 150°C
- DRIVEN BY:15HP motor 3/60/460V, 1760 rpm.
- DRIVEN VIA:US vari-speed drive, 4.1-16.5 rpm output to chain bullgear & pinion.
- DRUM RPM:1-4 rpm
- CAPACITY:10Sq.M /107SF surface area
- PRIOR SVC:Sorbic acid
- COMMENTS:107SF. surface area. Vessel inside capacity 2.96CU.M. Smooth drum, cored for steam. Vacuum enclosure. Bottom discharge chute.
- SHIPPING SIZE-W X H X L:10’W X 10’H X 16’L
- APPROX. WEIGHT-LBS:52800#
