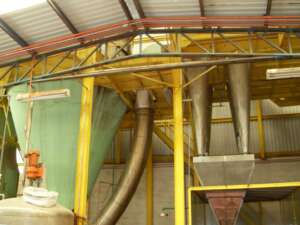

1270404 - DRYER, SPRAY, 14'DIA, 316SS, CENTRIFUGAL ATOMIZER, GAS, 1320PPH EVAP, BOWEN [1]

  • MFD.BY:Bowen
  • DATE MFD:1963
  • TYPE:Cylindrical drying chamber with top entering, high velocity,wet product feed via an atomizer. Heated air stream enters chamber tangentially at top and "flash-dries" product, leaving heavier dry solids to spiral downward to conical lower chamber and colle
  • MODEL:AB-3 spray machine
  • DIAMETER:14'
  • HEIGHT:30' approx. 7'6" main body plus 22'10-1/2" cone
  • TYPE ATOMIZER:Centrifugal.
  • ATOMIZER DETAIL:Mdl. C-SE #33. 30HP drive w/frequency converter v/speed.
  • MAT'L CONSTRN:316SS
  • EVAPORATION-PPH H2O:1320pph/ 600kg/hr approx.
  • TEMPERATURE:Inlet 1020°F, approx. outlet 215°F. approx.
  • AIR BLOWER:Chicago Blower mdl. 26MH w/40hp motor.
  • COMMENTS:Installed. 8" airlock product outlet. 4 Cyclone collectors. Was refurbished and relocated, reinstalled. 2 truckloads approx.
  • SHIPPING SIZE-W X H X L:16'W X 16'H X 40'L
  • APPROX. WEIGHT-LBS:25000#
  • QUANTITY:1
