- MFD.BY:Davenport
- DATE MFD:1997

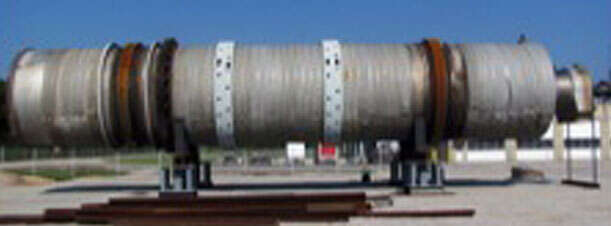

- TYPE:Horizontal rotary drum dryer with internal steam tubes running length of dryer shell.
- DIAMETER:12'
- LENGTH:65'
- TUBES:3 rows. 96 @ 3'' Sch.10, 72 @ 3'' Sch. 40, 48 @ 3'' Sch.10.
- TUBE HEATING AREA:14275SF
- MAT'L.CONSTRN-SHELL:304LSS 1" thick. 1.5" thick reinforcing pads under trunnions and bullgear
- MAT'L.CONSTRN-TUBES:316LSS
- DRIVEN BY:150HP 3/60/230-460v 1200RPM
- DRIVEN VIA:Falk Reducer, 1175rpm in, 39rpm out, 30.24:1 reduction. Bull gear 192"OD, 289 teeth 8" wide. Pinion gear 29teeth, 9" wide.
- RPM:2.85

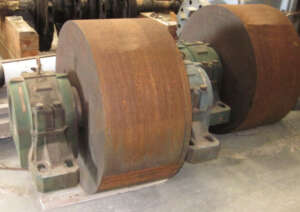

- RUNNING GEAR:Trunnions 161"OD x 16" wide. Rollers 36"OD x 17" wide
- PRIOR SVC:Terepthalic Acid

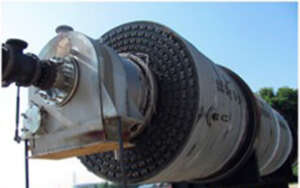

- COMMENTS:Counterflow. Internal lifters, 24 rows, 0.25'' x 3'' high, 304LSS. Intake hopper. Discharge hood 304LSS. Approx.10"Johnson rotary joint, 6" flex hose connections. 48"OD air outlet connection. 24"dia screw conveyor feed connection. Purged drum seals both
- SHIPPING SIZE-W X H X L:13'6"W X 13'6"H X 75'L
- APPROX. WEIGHT-LBS:290000#
- QUANTITY:1
