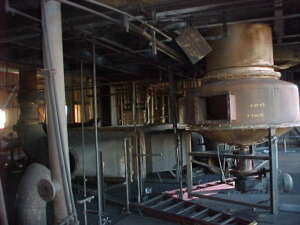

TYPE:Swirl Fluidizer drying system, continuous process. A conventional natural gas fired heater produces hot air which heats N2 in a closed loop inert gas heat exchanger. The hot N2 is fed into the Swirl Fluidizer cylindrical chamber via a tangential gas dispe
MODEL:SWF125
MAT'L.CONSTRN:304L/321SS. (Swirl chamber, lower, 321SS. Upper is 304LSS)
HEAT SOURCE:Gas. 5mm btu/hr. Low NOX. (1500 deg F in refractory lined combustion chamber.)
TEMPERATURE:520deg F Process gas (Air heated to 600deg F, circulated at 22"wc @ 5700acfm)
DRIVEN BY:25HP Swirl Rotor. 25HP mix tank.
DRIVEN VIA:Gear reducer, varispeed.
PRIOR SVC:Metal oxides 2-3000PPH approx.

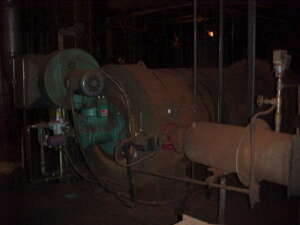

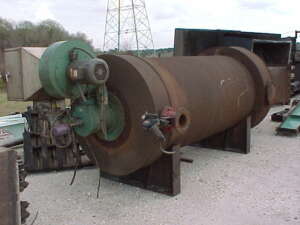

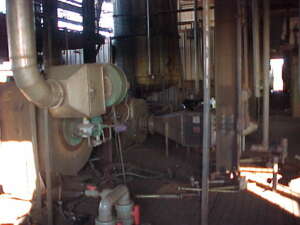

COMMENTS:Drawings & files available. Shut down 2001.nnHeater Mfd Arrtech, Tulsa, w/Maxon burner 5mm.btu/hr & 10HP combustion air blower . Recycle blower 25HP, 4415cfm @ 16"WC. Inert gas heat exchanger approx 9'w x 24'L.nnSingle 1HP feed screw feeds wet product
