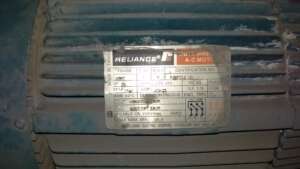

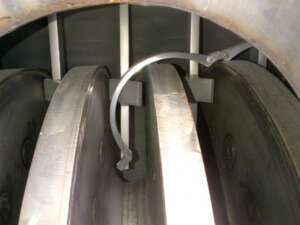

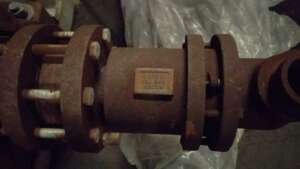

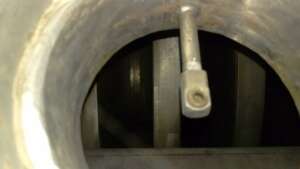

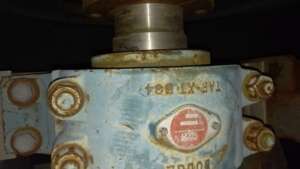

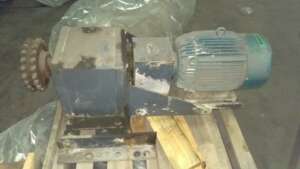

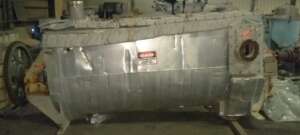

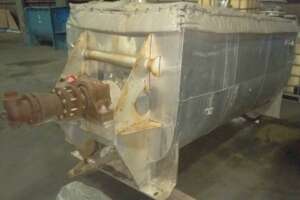

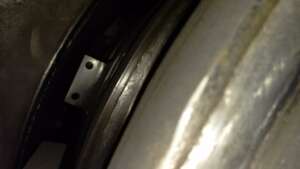

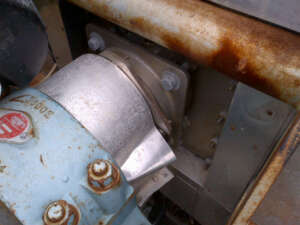

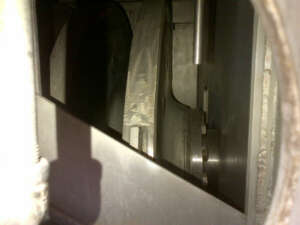

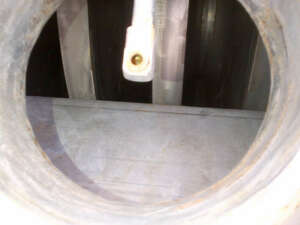

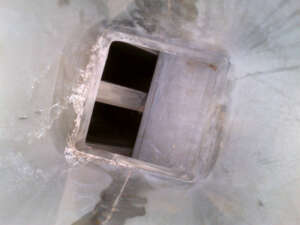

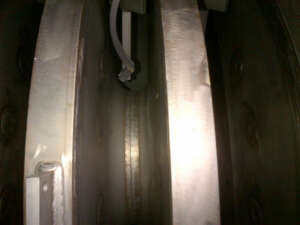

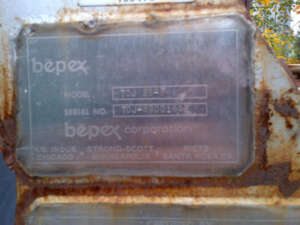

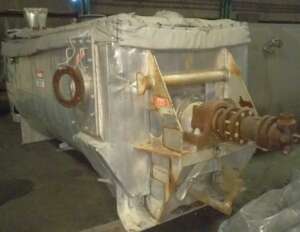

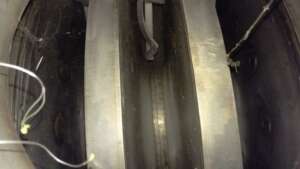

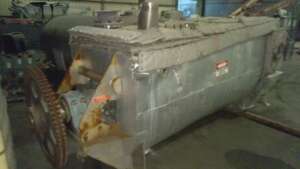

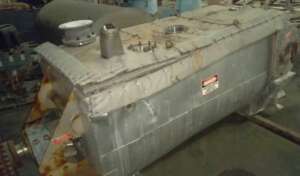

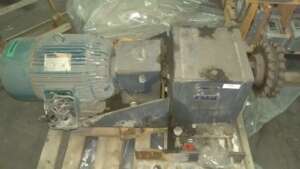

MFD.BY: Hosokawa. Strong Scott, Divn Bepex DATE MFD: 1989. Refurbished 2002 by Hosokowa / Bepex TYPE: Torus disc, continuous processor. Dries high viscosity, pasty, solid products in a trough via a series of cored discs rotating on a shaft through the product. MODEL: TDJ-36-8 SIZE: 36-8 (16 @ 36"dia. Discs, 8''spaced) Trough approx 42"w x 8'6" long. MAT'L.CONSTRN: 304SS Trough, Cover, Rotor, Shaft, Packed gland Seal housings HEAT SOURCE: Steam Rotor. Water jacketed. Jkt rated 75# @ 450 Deg F. Trough 5 psig @ 450Deg F. Rotor 150 psig @ 400 Deg F. TEMPERATURE: 450Deg F DRIVEN BY: 20HP 3/60/460V DRIVEN VIA: Gearmotor, 68RPM out, via 30"dia double chain sprocket bull gear. Rotor 18rpm approx. PRIOR SVC: Crystallized Pellet Dryer. Appears little used or unused since rebuild. COMMENTS: Cored shaft w/rotary joint. Dodge TAP.XT roller bearings. New rotor fitted 2002. ASME Nat.Bd.. Top cover connections 10", 8" [3]. Trough volume approx 260CF. SHIPPING SIZE-W X H X L: 4'W X 6'H X 14'L APPROX. WEIGHT-LBS: 5000# QUANTITY: 1
