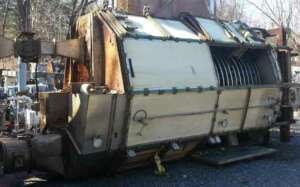

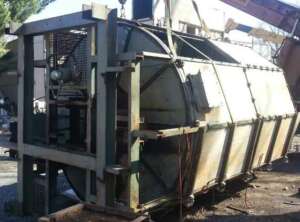

TYPE:Turbo-Tray dryer, continuous operation. Rotating central turbo-fan blades blow warm air over an annular tray stack assembled on a vertial axis. Stationary wiper blade pushes powder through radial slots on each tray every revolution. Product cascades fro
MODEL:N-28
TRAYS-DIAMETER:7'6"OD, 30" ID approx.
TRAYS-NUMBER:28
MAT'L CONSTRN-ROT.ASSY:SS. Trays, Leveler/Wiper blades & Turbo Fan assembly are SS
MAT'L CONSTRN-HOUSING:SS
DRIVEN BY:3HP gearmotor approx. main and separate fan drive. 0-10RPM.tray speed.
TEMPERATURE:300°F approx max
AIR BLOWER:Air circulation via integral turbo fan, recirculating.
PRIOR SVC:Drying

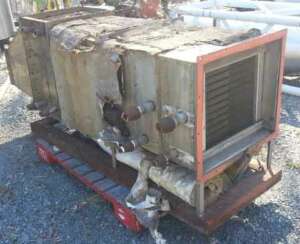

COMMENTS:Tray spacing approx. 4”, 37SF. approx.per tray, tray area 1000SF total approx. Housing w/hinged access panels. Controls, ductwork, discharge screw conveyor/manifold. steam coils and blower.
