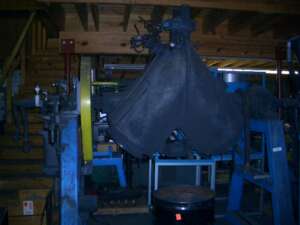

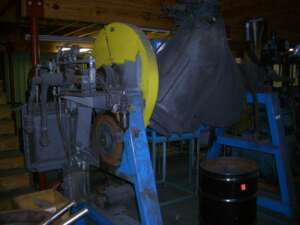

TYPE:Two jacketed cylindrical shells of equal length joined at 45° to one another at one end forming a "Vee". Rotation is around the horizontral axis, causing material to combine at the Vee's fulcrum when at the bottom of a revolution and dividing it into eac
MODEL:Dryer/Processor
CAPACITY:10CF [57% full]
MAX.PRODUCT DENSITY:270#/CF
SIZE:18" dia approx.
MAT'L.CNSTRN-SHELL:SA 240 GR 304SS
MAT'L.CNSTRN-JACKET:CS
PRESSURE-SHELL:FV

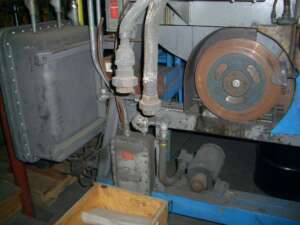

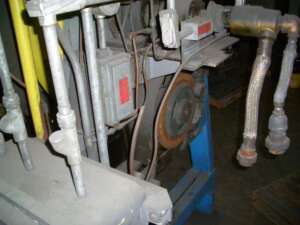

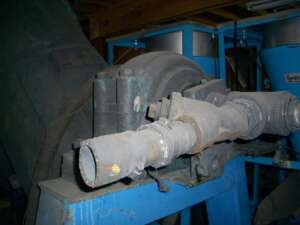

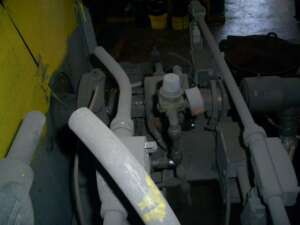

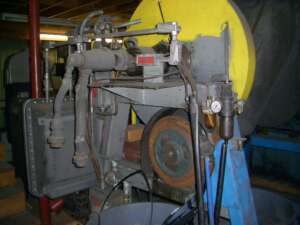

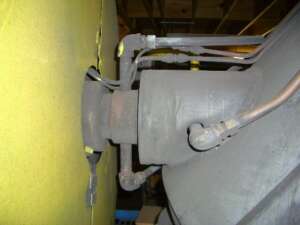

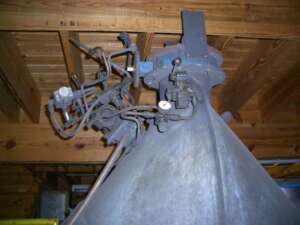

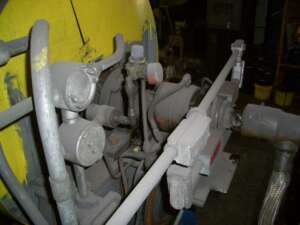

CONNECTIONS:3" vac. Tube w/1-1/2" slurry pipe through vacuum tube opp. drive end.. Heating oil connected via rotary joint in drive trunnion. Air for valve actuator via over shaft rotary union. 18"in covers/8" out W/buterfly valve w/12" retractable sleeve, hyd. Actua
