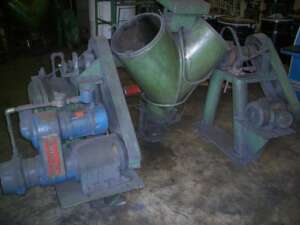

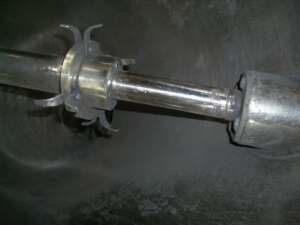

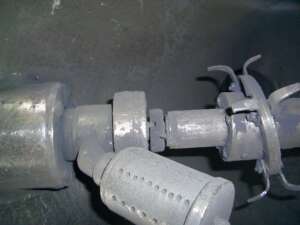

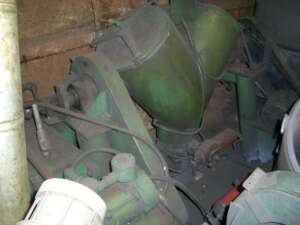

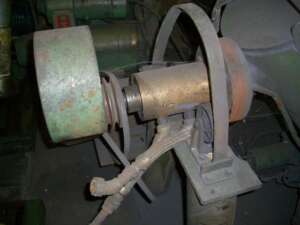

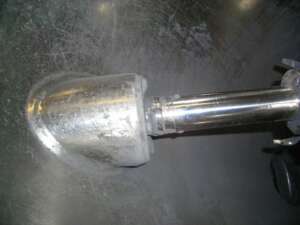

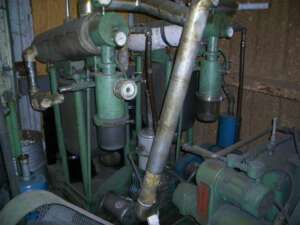

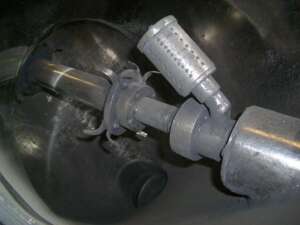

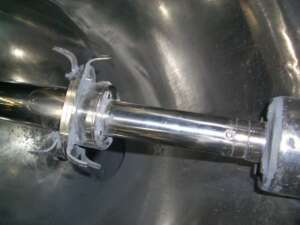

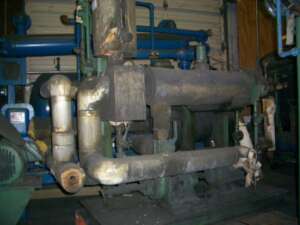

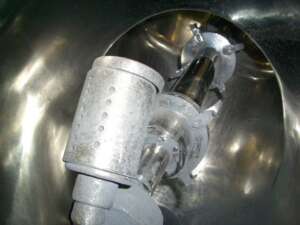

MFD.BY: Patterson-Kelley DATE MFD: 1981 approx. TYPE: Two jacketed cylindrical shells of equal length joined at 45° to one another at one end forming a "Vee". Rotation is around the horizontral axis, causing material to combine at the Vee's fulcrum when at the bottom of a revolution and dividing it into eac MODEL: Dryer/Processor CAPACITY: 3 CF MAX.PRODUCT DENSITY: 300#/CF SIZE: 17" dia approx. MAT'L.CNSTRN-SHELL: SA 240 GR 304SS MAT'L.CNSTRN-JACKET: CS PRESSURE-SHELL: FV CONNECTIONS: 16"in/6" out slide gate valve. DRIVEN BY: 1HP 3/60/230-460V XP. 1765rpm approx. DRIVEN VIA: Reeves Varispeed, Gear motor 6.6-60RPM, w/Chain & pinion drive. 3Ft/Lb Brake & jog. LIQUIDS-SOLIDS BAR: Solids intensifier bar. 5HP 3/60/230-460V XP Fr.184T. 1765rpm approx. PRIOR SERVICE: Carbide powder COMMENTS: On stands. Controls. 18KW electric hot oil heater w/1HP pump & controls pkg. [3'w x 4'h x 6'l] Vacuum pump, 26CFM, 1-1/2HP Kinney KC8 w/15SF condenser package, 35g receiver. [3'w x 4'h x 6'l] SHIPPING SIZE-W X H X L: 6'W X 5'H X 3'L APPROX. WEIGHT-LBS: 3500# QUANTITY: 1
