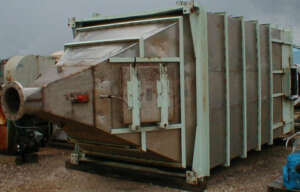

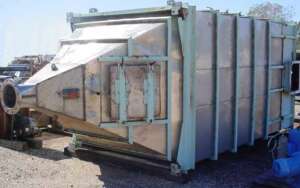

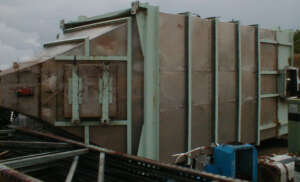

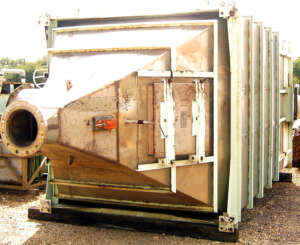

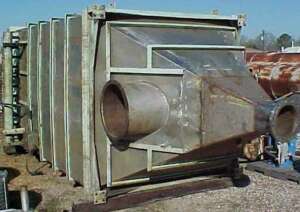

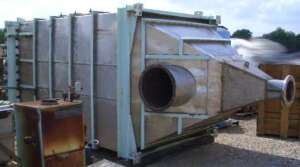

TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
MODEL:RP-10-1204
FILTER MEDIA TYPE:Bags
FILTER MEDIA-SIZE4.5"dia. X 8' approx.

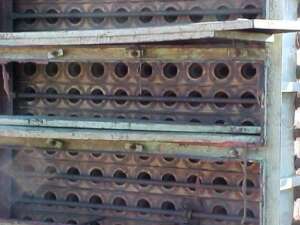

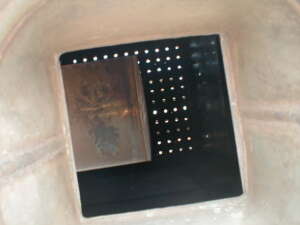

FILTER ELEMENTS-NO:121 w/4 top access panels to service filter socks from clean air plenum roof.
SIZE-SQ.FT. AREA:1180 approx.
BODY-SIZE:7'Sq X 10'long + 2' plenum + 4'cone approx.
MAT'L CONSTRN-BODY:304SS
DISCHARGE TYPE:REV.PULSE
DESIGN AIR FLOW:6675 CFM
BLOWER(S)NA
CONNECTIONS-AIR:18" x 18" out, 24" dia in, approx.
CONNECTIONS-PRODUCT:10"dia approx.
CLOTH/AIR RATIO:3:1 approx.
PRIOR SVC:FE Oxides
COMMENTS:Less bags/cages. Less 4 legs [6" x 8' approx]. Flanged at lower shell/cone transition on corners.
