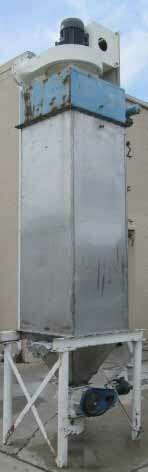

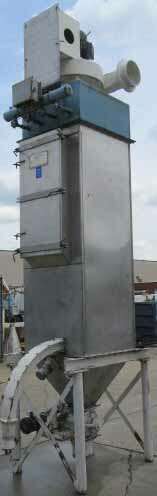

1272143 - DUST COLL, 170SF, SS, REV.PULSE, BAGS, FLEX KLEEN, 84BVEC16III [1]

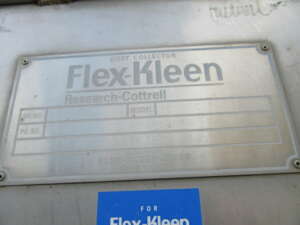

  • MFD.BY:Flex-Kleen
  • DATE MFD:2000 approx.
  • TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
  • MODEL:84BVEC16 III
  • FILTER MEDIA TYPE:Bags
  • FILTER MEDIA-SIZE6" X 7' long
  • FILTER ELEMENTS-NO:16
  • SIZE-SQ.FT. AREA:170 SF
  • BODY-SIZE:32'' X 32'' X 8'7"H + 2'cone bottom approx
  • MAT'L CONSTRN-BODY:SS Contacts [body & bottom cone. Upper plenum CS.]
  • DISCHARGE TYPE:Reverse pulse jet, solenoid controlled, air blowback bag cleaning.
  • DESIGN AIR FLOW:500cfm approx
  • BLOWER(S)7.5HP, 3/60/208-230/480V, 3500rpm. Motor
  • CONNECTIONS-PRODUCT:Solids/dust discharge in cone bottom.
  • CLOTH/AIR RATIO:3-5:1 approx.

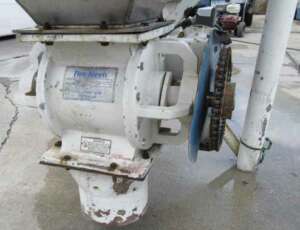

  • COMMENTS:4 Legs. Bottom solids discharge w/8"x 8" SS rotary valve, 1HP drive. Approx. 6.2cfm pulse air. Solenoids & Timer. Magnehelic guage. O/all 38"W x 51"D x 15'H installed
  • SHIPPING SIZE-W X H X L:4'6''W X 4'H X 15'L
  • APPROX. WEIGHT-LBS:2000#
