TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio

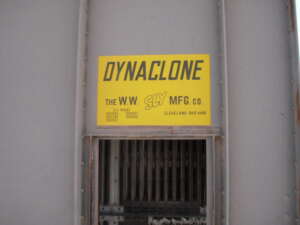

MODEL:Dynaclone
FILTER MEDIA TYPE:Envelopes.
FILTER MEDIA-SIZE2' wide x 2’ long approx [tbc]

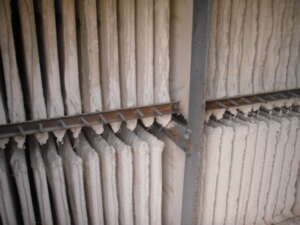

FILTER ELEMENTS-NO:99 bags total, 33bags per level [3 rows, 11 envelopes per section, each 23sf total both sides. 3 levels high]
SIZE-SQ.FT. AREA:2277 approx.[tbc]
BODY-SIZE:8' W X 8'L X 11'H lower body
MAT'L CONSTRN-BODY:CS
DISCHARGE TYPE:Reverse air
DESIGN AIR FLOW:5-12000CFM approx. depending on cloth to air ratio, cloth porosity etc.
PRESSURE-SHELL:.
BLOWER(S)NA
CONNECTIONS-AIR:Open bottom plenum, connects to a process or silo
CLOTH/AIR RATIO:2:1-5:1 Dependent on type bag/dust loading ,etc.
PRIOR SVC:Mining minerals
COMMENTS:Side access doors to service filter bags from the top of the clean air plenum. [144bags total per plant maintenance = 3312SF to be confirmed]
