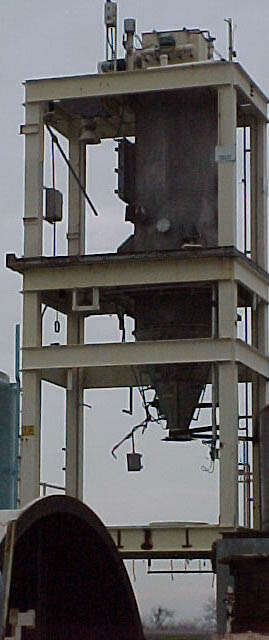

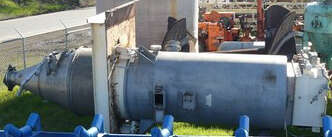

TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
MODEL:84BVTC-25I
FILTER MEDIA TYPE:Bags
FILTER MEDIA-SIZE6" X 7' long.
FILTER ELEMENTS-NO:25
SIZE-SQ.FT. AREA:250 approx
BODY-SIZE:4'ID X 12'long W/cone bottom
MAT'L CONSTRN-BODY:SS
DISCHARGE TYPE:Reverse pulse jet, solenoid controlled, air blowback bag cleaning.
DESIGN AIR FLOW:500-2,000cfm approx. (2:1-8:1Air/Cloth Ratio, dependent on dust loads)
BLOWER(S)5HP New York 3/60/230-460v tefc
CONNECTIONS-AIR:Inlet 8" dia. Discharge gas 8" top approx.
CONNECTIONS-PRODUCT:Solids/dust discharge 12" dia. in cone bottom. Approx.
