TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
MODEL:Pulse Jet
FILTER MEDIA TYPE:Bags
FILTER MEDIA-SIZE6" dia. x 14' long.
FILTER ELEMENTS-NO:1536 [256 per compartment]
SIZE-SQ.FT. AREA:33750 approx. [5626sf ea compartment]
BODY-SIZE:24'W X 36'L X 30'H
MAT'L CONSTRN-BODY:CS
DISCHARGE TYPE:Rev.Pulse. Manifold, solenoids and timer installed.
DESIGN AIR FLOW:105,000 CFM approx. @ 3.11 air/cloth ratio
PRESSURE-SHELL:Atm#
BLOWER(S)600hp
CONNECTIONS-AIR:8' x 8' square, combined manifold inlet & outlet, approx.
CONNECTIONS-PRODUCT:18" x 6" per compartment, hopper outlet, approx.
CLOTH/AIR RATIO:3.11:1 dependent on dust load and cloth twill/ porosity

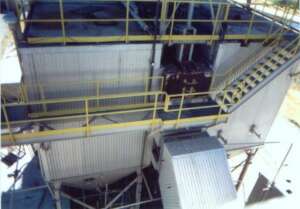

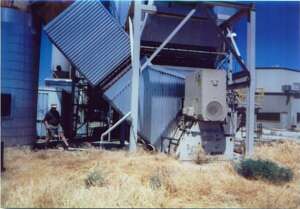

COMMENTS:6 compartments/modules, separable for shipping( ship size per). Cone bottoms w/rotary valves into screw conveyors. Structural steel, stairs, roof, 6'dia. x 65'tall clean air stack. Still installed. Equipment and structural details drawings included.
