TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
MODEL:266RFH10
FILTER MEDIA TYPE:Nomex Hi Temp Bags
FILTER MEDIA-SIZE10' long approx.
FILTER ELEMENTS-NO:266 4 concentric rings of bags,
SIZE-SQ.FT. AREA:3460
BODY-SIZE:10'3''dia X 21'6'' + 6' cone bottom, on 4 legs, approx. 37'5" OAH.
MAT'L CONSTRN-BODY:CS
DISCHARGE TYPE:Reverse pulse, air-jet bag cleaning type. integral blower directs high volume low pressure air through top center inlet to internal rotating [chain driven] sweep manifold travelling over top of baghouse tubesheet, approx. 0.25rpm. Tangential involute scro
DESIGN AIR FLOW:24000CFM approx. depending on cloth to air ratio, cloth porosity etc.
PRESSURE-SHELL:Atm#
BLOWER(S)50HP 3/60/460v, belt drive, Air-Pro Fan Co. mdl. AFHS300 centrifugal fan w/silencer and connecting ductwork. Rated 24000cfm @ 10-12"SP. Donaldson torit AirFlow controller electrical panel including VFD motor starter and disconnects.
CONNECTIONS-AIR:24"sq. inlet. High in body side, 21'5''C/L to ground. Outlet 18" x 48" rect. approx. in upper plenum, 31'2" C/L to ground..
CONNECTIONS-PRODUCT:12" x 12" flanged to HDX Meyer rotary airlock discharge.
CLOTH/AIR RATIO:7:1 approx. Dependent on type bag/dust loading ,etc.
PRIOR SVC:Hi temp rotary calciner dust/ powders. Basic Hi temp option set to operate to 200Deg w/high temp seals & paint.

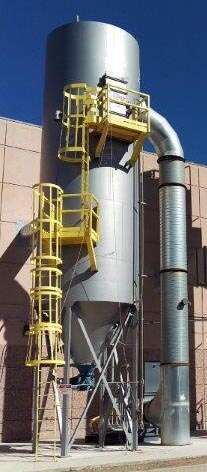

COMMENTS:Complete package, free standing, outdoors with all duct work, caged access ladder and platform for walk-in platform, instrumentation, Control panel, VFD driver, motor starter and quick disconnect. PD Blower, ID fan and motor. Top access panels in plenum s
