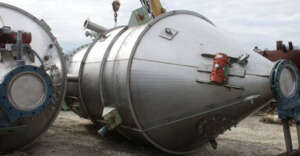

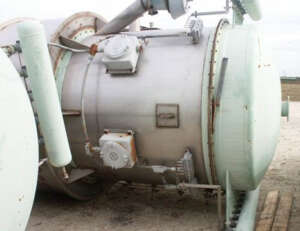

1271573 - DUST COLL, 384SF, 304SS, REV.PULSE, BAGS, PECO, 64-06-300CF [2]

  • MFD.BY:PECO
  • DATE MFD:2000
  • TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
  • MODEL:64-06-300CF
  • FILTER MEDIA TYPE:Tubes
  • FILTER MEDIA-SIZE5.5" Dia X 42"L
  • FILTER ELEMENTS-NO:108 Epoxy coated CS wire frames
  • SIZE-SQ.FT. AREA:384SF
  • BODY-SIZE:6'D X 7'8''H
  • MAT'L CONSTRN-BODY:304SS 10Ga
  • DISCHARGE TYPE:Rev.Pulse
  • DESIGN AIR FLOW:2300CFM approx.
  • PRESSURE-SHELL:DP 4 psi. Operating 2psig/ 8'' Vac.
  • BLOWER(S)NA
  • CONNECTIONS-AIR:6"Dia tangential in. 6" Top out. 6'' PCV. 16"dia cleanout in cone.
  • CONNECTIONS-PRODUCT:14" CBO w/valve.
  • CLOTH/AIR RATIO:3.7:1
  • PRIOR SVC:Bin Vent /Filter Receiver, 60000PPH Polypropylene powder 25-35#/CF

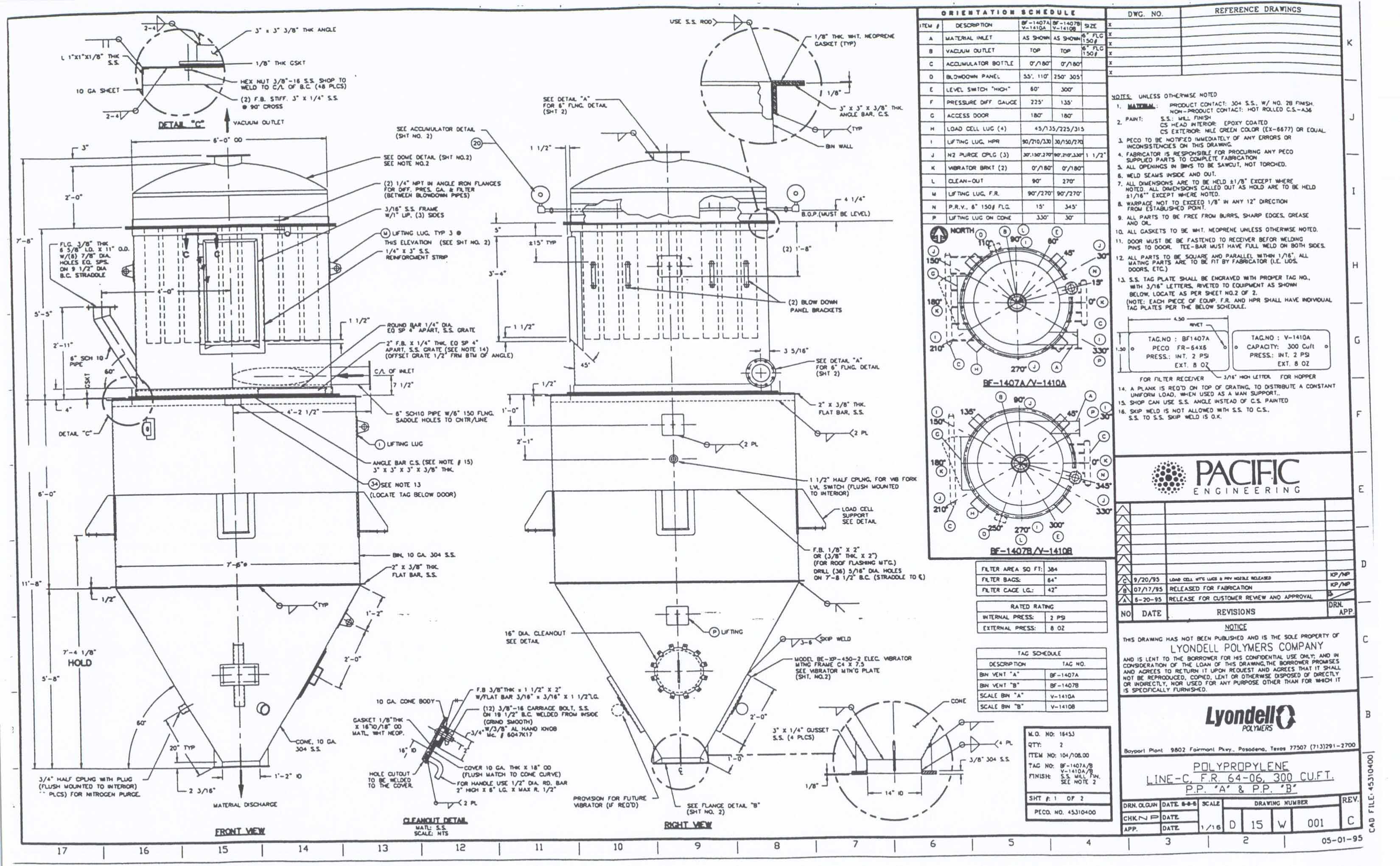

  • COMMENTS:Dust collector body 5'6''dia x 7'8'' long flanged at lower shell and bolted to top of 7'6''dia x 6't-t plus 5'8'' cone bottom 300CF 304SS product Bin. Top bag removal, bolted top roof. 2psig int rated, 8 psig ext.
  • SHIPPING SIZE-W X H X L:7'6''W X 7'6''H X 18'6''L
  • APPROX. WEIGHT-LBS:4500#
