TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio

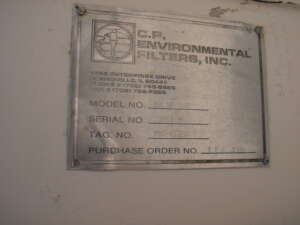

MODEL:84-NF-049
FILTER MEDIA TYPE:Bags
FILTER MEDIA-SIZE4-1/2" X 8' long.
FILTER ELEMENTS-NO:49
SIZE-SQ.FT. AREA:462SF approx

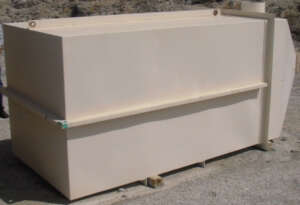

BODY-SIZE:5' SQ X 10'H +4'cone bottom
MAT'L CONSTRN-BODY:CS

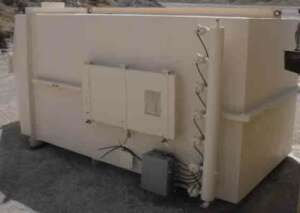

DISCHARGE TYPE:Reverse pulse jet, solenoid controlled, air blowback bag cleaning.
DESIGN AIR FLOW:1400cfm approx. (3:1 Air/Cloth Ratio)
CONNECTIONS-PRODUCT:Solids/dust discharge in cone bottom.
CLOTH/AIR RATIO:3 :1 approx.
COMMENTS:Bottom solids discharge. 38 cages installed, no clamps.
