TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio

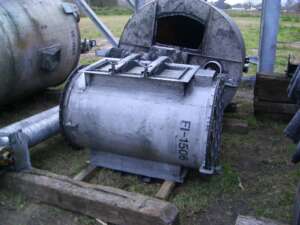

MODEL:Bin Vent Collector
FILTER MEDIA TYPE:Bags
FILTER MEDIA-SIZE4.5" dia. x 48" long

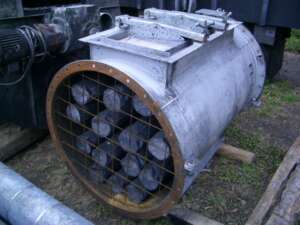

FILTER ELEMENTS-NO:14
SIZE-SQ.FT. AREA:56
BODY-SIZE:32" dia. x 4's-s
MAT'L CONSTRN-BODY:CS
DISCHARGE TYPE:Reverse pulse.
DESIGN AIR FLOW:200-500CFM approx.
PRESSURE-SHELL:14# MAWP @ 200°F.
CONNECTIONS-AIR:32" inlet, 6" top outlet.
CONNECTIONS-PRODUCT:Open to bin vent, bottom discharge.
PRIOR SVC:Carbon

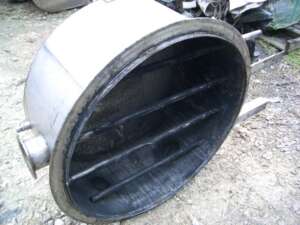

COMMENTS:Flanged direct to hopper, 1500gall. Side access opening 16" x 30" with cover, to bags. Reverse pulse. SS top plenum, flanged and bolted to shell.
