TYPE:Bag housing with vertically supported fabric bags which retain dust particles as low pressure dust-ladened air flows through them. Process air enters lower plenum, and exits after passing through the bags out of the top discharge manifold. Bags are perio
MODEL:S-10-544-6718

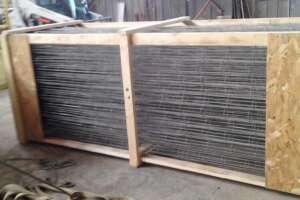

FILTER MEDIA TYPE:Cloth bags
FILTER MEDIA-SIZE10' long x 4-1/2"dia

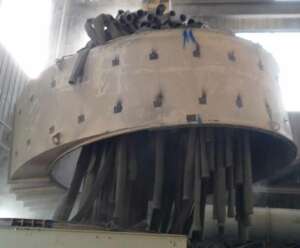

FILTER ELEMENTS-NO:544 [11 concentric rings of bags]
SIZE-SQ.FT. AREA:6718

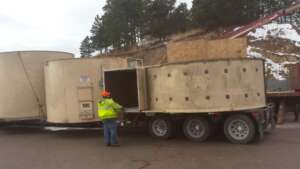

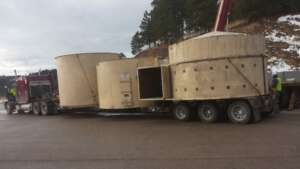

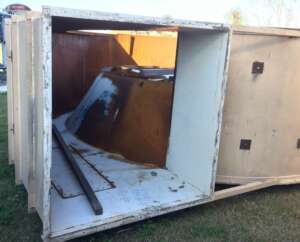

BODY-SIZE:Flanged bolted sections for transport. 13'8''dia X 12'8'' high top walk in plenum, 15'4'' high body + 10'5'' cone bottom, on 4 @ 14'8'' long legs giving 4'8'' ground clearance, approx. 43' 1-1/2" OAH.
MAT'L CONSTRN-BODY:CS

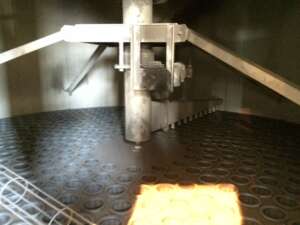

DISCHARGE TYPE:Reverse pulse, air-jet bag cleaning type. Integral 15HP blower directs high volume low pressure air through top center inlet to internal rotating [1/3HP chain driven] sweep manifold travelling over top of baghouse tubesheet, approx. 0.25rpm. Tangential in
DESIGN AIR FLOW:12000-50000CFM approx. depending on cloth to air ratio, cloth porosity etc.
CONNECTIONS-AIR:4'8''sq. Tangential/Cyclonic inlet, lower shell side, flanged 17'7'' C/L to ground. Outlet 5'3''Sq. high in body side, 36'C/L to ground.
CLOTH/AIR RATIO:2:1-5:1 approx. Dependent on type bag/dust loading ,etc.
PRIOR SVC:Minerals.

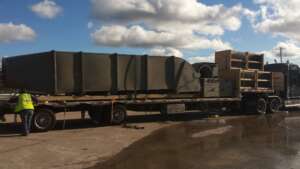

COMMENTS:Package, less bags. Free standing design,with some duct work, caged access ladder and platform for walk-in platform, ID fan and motor. High efficiency. Process air inlet is tangential, CCW scroll shape creates Cyclonic flow to drive larger particles to co
