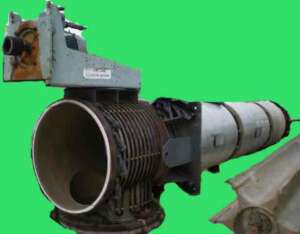

1271322 - EVAP, THIN FILM, 150SF, LUWA, LN1400, HAST.C SHELL, HAST.C-316SS ROTOR, VERT [1]

  • MFD.BY:Luwa
  • DATE MFD:1992
  • TYPE:Thin film evaporator. Product fed into one end of jacketed tubular shell where rotating element's centrifugal action directs product in a spiral path along entire inner surface of shell. Rotor blades feature a fixed clearance between blade tip and inner s
  • MODEL:LN1400
  • ORIENTATION:Vertical
  • SURFACE AREA:150.7 SF [14 Sq.M]
  • MAT'L.CNSTRN-SHELL:Hastelloy C22 3/4" thick plate 34.375'' OD. Evaporation/rotor section. Upper vapor section is 316SS
  • MAT'L.CNSTRN-ROTOR:Hastelloy C276 tips welded to 316SS shaft. Spare all 316SS rotor available
  • MAT'L.CNSTRN-JACKET:CS
  • PRESSURE-SHELL:FV/ATM# @ 650Deg F ASME NBd
  • ROTOR:Fixed clearance type.
  • DRIVEN BY:20HP motor, 3/60/230-460V, 900 rpm. TEFC XP Fr 324T
  • DRIVEN VIA:V-Belt
  • COMMENTS:Shell 3'1"O.Dia jkt x 17'8" heated length. Originally 1986, 316SS shell, repaired in 1990. Offenhauser replaced lower 3 sections with 3/4" Hast C22 in 1992. 2 rotoras available, one all 316SS, other 316SS shaft with Hast C 276 Blade tips. Lower shell Has
  • SHIPPING SIZE-W X H X L:4'W X 4'H X 30'L
  • APPROX. WEIGHT-LBS:25000#
  • QUANTITY:1
