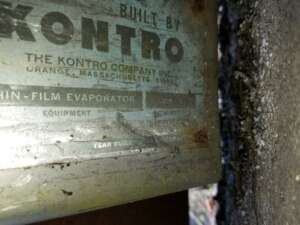

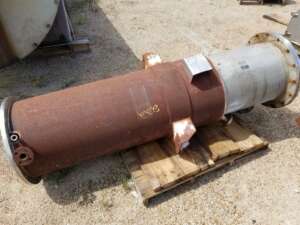

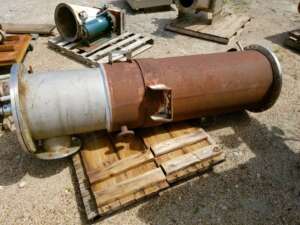

TYPE:Thin film evaporator. Product fed into one end of jacketed tubular shell where rotating element's centrifugal action directs product in a spiral path along entire inner surface of shell. Rotor blades feature a fixed clearance between blade tip and inner s
MODEL:CBV-21
ORIENTATION:Vertical
SURFACE AREA:21 Sq.Ft approx. 18"dia x 54'' shell length under heating jkt, approx.
MAT'L.CNSTRN-SHELL:316LSS
MAT'L.CNSTRN-ROTOR:316LSS
MAT'L.CNSTRN-JACKET:CS
PRESSURE-SHELL:FV @ 387Deg F approx.
CONNECTIONS:Feed 4" Top-Vapor 3" Solids out- 3"'

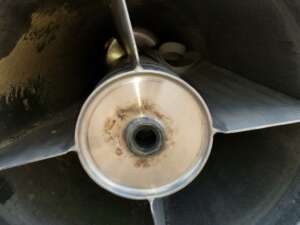

ROTOR:4 Blade fixed clearance
DRIVEN BY:NA- Est 20HP 3/60/230-460v 1745 rpm Fr 215T TEFC Motor at top.
DRIVEN VIA:V-belt
COMMENTS:Missing drive, bottom conical head and rotor bearing support and top bearing housing.
