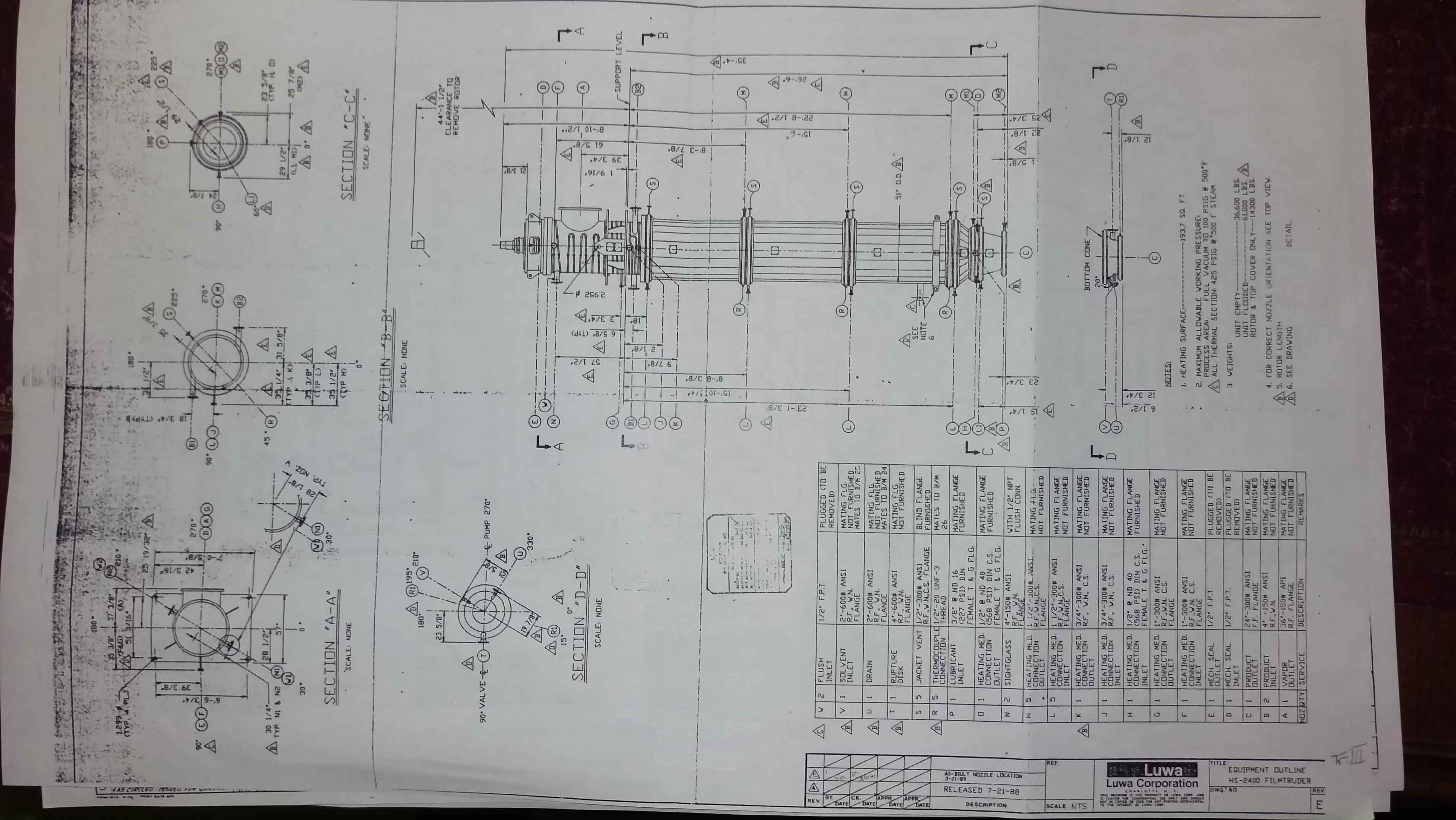

MFD.BY: Luwa DATE MFD: 1989 TYPE: Thin film evaporator. Product fed into one end of jacketed tubular shell where rotating element's centrifugal action directs product in a spiral path along entire inner surface of shell. Rotor blades feature a fixed clearance between blade tip and inner s MODEL: HS2400 Filmtruder ORIENTATION: Vertical SURFACE AREA: 258 SF [24SQ. M] [4'7''ID X 35'4''L] MAT'L.CNSTRN-SHELL: 316LSS clad MAT'L.CNSTRN-ROTOR: 316SS MAT'L.CNSTRN-JACKET: CS PRESSURE-SHELL: FV100# @ 500Deg F MAWP ASME. N.Bd. CONNECTIONS: 36"dia vapor outlet [top]. 2 @ 4" feed inlets. 24"dia product outlet, 300#. ROTOR: Fixed clearance type. 6 rows of 20 Deg Pitched blades, 6 rows of straight blades. 35'5" long rotor shaft o/all. Mechanical seals Crane type 151, top, roller brgs. DRIVEN BY: 400HP motor, 3/60/4160V, 1800 rpm. XP Fr 30C, DRIVEN VIA: Reducer, Flender SRVN size 1000, 30.66:1Red, 58.7 rpm output. Spare available. Rotor speed 58.7rpm CAPACITY: 13000pph feed PRIOR SVC: Polymer processing. Styrene-Butadiene resin COMMENTS: Unit fed 300mm devolitizing 2-screw extruder. 48"I dia, 51"OD x 23'long 3-sections evaporator body, 61"high top discharge/Separator section. Unit wt 36600# empty less drive. Rotor & top cover 14300#. Upper support plate 26'6" above outlet.nTypical featu SHIPPING SIZE-W X H X L: 5'W X 7'H X 36'L APPROX. WEIGHT-LBS: 36600# QUANTITY: 1
