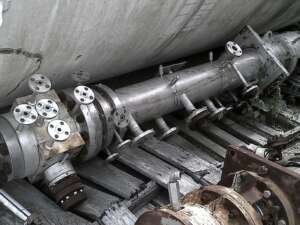

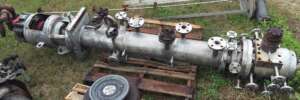

1271061 - EVAP, THIN FILM, 5.4SF, LUWA, HS0050, 316LSS SHELL, 316LSS ROTOR, VERT [1]

  • MFD.BY:Luwa/Buss
  • DATE MFD:1989
  • TYPE:Thin film evaporator. Product fed into one end of jacketed tubular shell where rotating element's centrifugal action directs product in a spiral path along entire inner surface of shell. Rotor blades feature a fixed clearance between blade tip and inner s
  • MODEL:HS-0050 Filmtruder. Countercurrent type.
  • ORIENTATION:Vertical
  • SURFACE AREA:5.4 SFapprox. 9"dia x 5ft shell length approx.
  • MAT'L.CNSTRN-SHELL:316LSS
  • MAT'L.CNSTRN-ROTOR:316LSS
  • MAT'L.CNSTRN-JACKET:316LSS 3-Zones 18"Long
  • PRESSURE-SHELL:FV100# @ 650Deg F ASME, NB
  • EVAP. RATE-PPH H2O:35-50PPH approx.
  • CONNECTIONS:Feed 1.5" top- Vapor 6" Solids out- 1.5"'

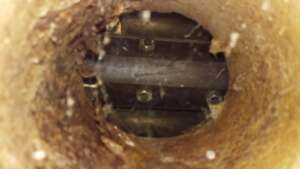

  • ROTOR:Adjustable clearance type.
  • DRIVEN BY:Hydraulic motor. Top direct coupled in line.
  • DRIVEN VIA:Direct
  • CAPACITY:175PPH/80Kg/Hr approx.
  • PRIOR SVC:Polymers.

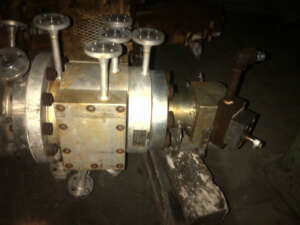

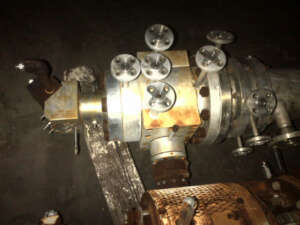

  • COMMENTS:Hydraulic drive, Die head discharge via MAAG polymers gear pump. Last used in conjuction with similar size evaporator with MAAG gear pump discharge..
  • SHIPPING SIZE-W X H X L:2'W X 2'H X 10'L
  • APPROX. WEIGHT-LBS:1500#
  • QUANTITY:1
