1271989 - EVAP, WIPED FILM, 35SF, RODNEY HUNT, 18-090 TURBA FILM, SS SHELL, SS ROTOR, VERT [1]

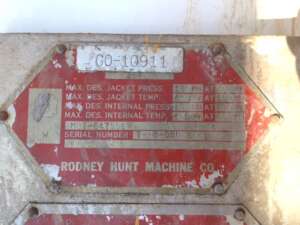

MFD.BY:Rodney Hunt, Orange MA
DATE MFD:1964
TYPE:Thin film evaporator. Product fed into one end of jacketed tubular shell where rotating element's centrifugal action directs product in a spiral path along entire inner surface of shell. Rotor blades wipe clean shell surface behind product path. Liquid pr
MODEL:18-090 Turba-Film Processor
ORIENTATION:Vertical
SURFACE AREA:35SF 18"dia x 8'T-T.
MAT'L.CNSTRN-SHELL:SS
MAT'L.CNSTRN-ROTOR:SS
MAT'L.CNSTRN-JACKET:CS
PRESSURE-SHELL:FV15# @ 400°F
EVAP. RATE-PPH H2O:700 approx.
CONNECTIONS:12" top vapor out. 4" cbo approx.
ROTOR:Fixed clearance

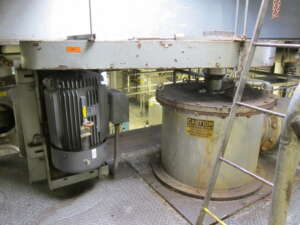

DRIVEN BY:25HP 3/60/460v
DRIVEN VIA:Belt drive
CAPACITY:1400PPH
PRIOR SVC:Food proteins

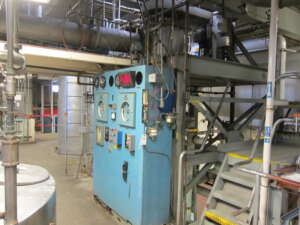

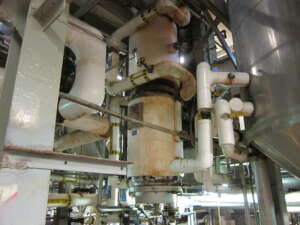

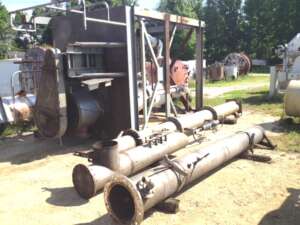

COMMENTS:Used-good condition. Skid mounted system with vertical Condenser, Overhead Barometric Condenser 14" dia x 15'8" long, w/12"dia x 7' long top vapor section. Skid approx. 8'8"w x 7'8"long x 15' o/all height.
