1270322 - FEEDER, HOPPER, 25CU.YD, 12'W X 9'H X 14'L, CS, 4 @ 5HP, SLUDGE, UNUSED [1]
MFD.BY:Waterlink [tbd]
DATE MFD:1995 approx.
TYPE:Hopper feeder
SIZE:12'W X 14'L X 9'H
MAT'L CONSTRN:CS
DRIVEN BY:4 @ 5HP approx.
DRIVEN VIA:Chain
CAPACITY:500CF Approx.
PRODUCT DENSITY:500#Cu.Ft.

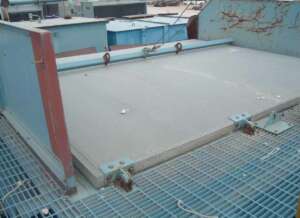

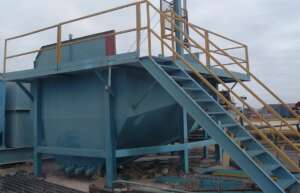

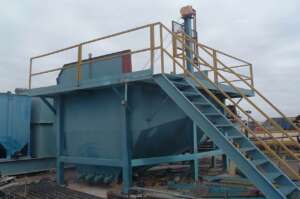

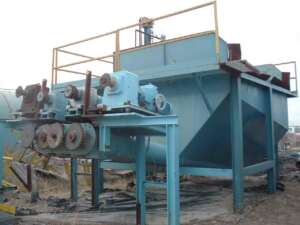

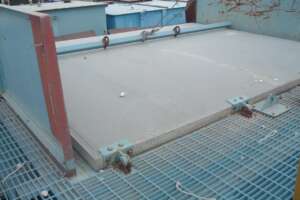

COMMENTS:25CY /675cf Sludge hopper with cover, stairway and handrails. Features [4] parallel U trough screw conveyors, mounted at 45deg. Deliver wet or dry solids from hopper bottom apex to discharge height approx. 9'.
