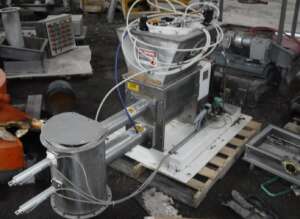

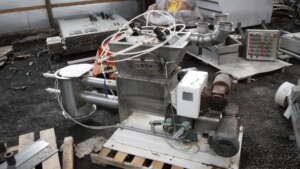

1271847 - FEEDER, LOSS IN WT, ACRISON, 402B-12000-225-105Z/101-K/N, SS, 2@1HP, DRUM FILLER [1]
MFD.BY:Acrison Inc, Moonachie NJ
DATE MFD:2000 approx
TYPE:Loss in weight feeder. Dry solids auger type Batch or Continuous Weigh Feeding system.
MODEL:402B-12000-225-105Z/101-K/N
MAT'L CONSTRN:SS
DRIVEN BY:2 @ 1HP, 3/60/230V motors. Approx.
DRIVEN VIA:Variable speed Gearmotors [2]
CAPACITY:20LB- 60Cu.Ft./Hr
PRODUCT DENSITY:35-50#/cu.ft.prior service
COMMENTS:Overhead Product hopper feeds system. 12" dia top flange with butterfly valve feeds SS hopper/chute 24”square x 24"deep with flexible rubber transition to lower 6" section. Dual output tubes, 4" & 6" dia x 24"long horizontal, transition to vertical 12" di
