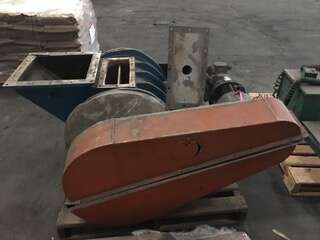

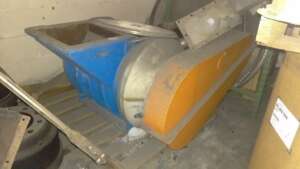

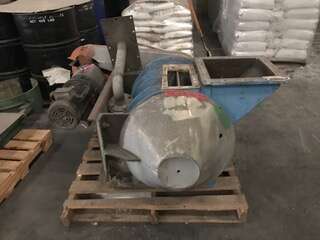

1271754 - FEEDER, ROTARY AIRLOCK, 14'' X 14'', SS, CLOSED ROTOR, 3HP, S-WALDRON [1]

  • MFD.BY:Sprout Waldron [tbc]
  • DATE MFD:1990 approx.
  • TYPE:Multi-vane element rotates in closed valve type chamber transferring product from inlet to discharge in pockets formed between blades/vanes while preventing air passage through valve.
  • MODEL:tbc
  • ROTOR DIA/LONG:14" X 14"
  • ROTOR OPEN/CLOSED:Closed
  • CONNECTION-INLET:14" x 14" Flanged. Adjacent top rectangular flange approx. 6" x 14"
  • CONNECTION-DISCHG:14" x 14" Flanged.
  • # VANES:8
  • REMOVABLE TIPS:No
  • MAT'L CONSTRN-ROTOR:SS
  • DRIVEN BY:3HP Baldor, 3/60/208-230-460V Fr 182TC TEFC 1725RPM
  • DRIVEN VIA:Gear Reducer, Chain & sprocket rotor drive.
  • ROTOR RPM:12 approx. [tbc]
  • VOLUME PER REVOLUTION:0.9 CF Approx [tbc]. 1RPM = 66CFH, 12RPM= 772CFH, 22RPM = 1452 CFH [MAX]
  • PRIOR SVC:Plastic Pellets
  • COMMENTS:Offset inlet flange. Adjustable flow product inlet gate. Top vent adaptor flange, 6" x 14".
  • SHIPPING SIZE-W X H X L:3'W X 2'H X 3'L
  • APPROX. WEIGHT-LBS:500#
  • QUANTITY:1
