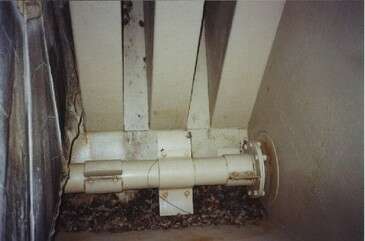

1271136 - FILTER, DISC, 8'10''DIA, 4 DISC, CS, EIMCO, 440SF [1]

  • MFD.BY:EIMCO
  • TYPE:Disc filter. Vertical, rotating perforated disc type circular filter element(s). The element assembly rotates around a horizontal axis while partially submerged in a trough containing a the liquid slurry to be filtered. The mother liquor passes through th
  • DIAMETER-DISC:8'10" approx.
  • DISC(S)-NO.:4
  • APPROX. FILTER AREA:440 sq.ft.
  • MAT'L CONSTRN-DISC:CS 10 sectors.
  • MAT'L CONSTRN-PAN:CS
  • ENCLOSURE:NA
  • DRIVEN BY:2 HP variable speed drive.
  • DISCHARGE MECHANISM:Screw conveyor discharge.
  • SHIPPING SIZE-W X H X L:10'W X 10'H X 10'L
  • APPROX. WEIGHT-LBS:15000#
  • QUANTITY:1
