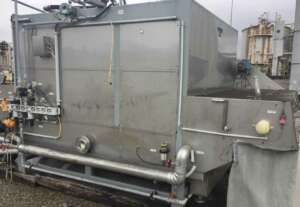

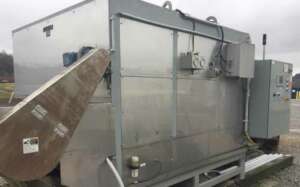

TYPE:Indexing vacuum belt. The filter uses a pneumatic airbag to keep an upper and lower platten together with a liquid tight seal while solid bearing liquid is pumped through the filter media. Once the pressure inside the filter has reached 30-40 psi, compres
MODEL:OPF-50
SIZE:7' wide belt approx.
MAT'L.CONSTRN:SS
APPROX. FILTER AREA:50 SF
PRESSURE:30-40psi initial liquid filtering. 100# compressed air bladder provides secondary filtration of liquor in chamber through retained solids/fines packed in bed.
JACKET TYPE:N/A
PRESSURE-JACKET:N/A
SUPPORTS:CS Skid
PRIOR SVC:Waste water Salts. Proceses up to 3 ft3 Solids / hr / ft2 of Filter Area. Flow rate up to 2000gpm water, 835gpm 2000SSU oil
COMMENTS:Operated intermittently for 12mo then idled, indoors. Operating manual and general arrangement drawings on file. Removed from installation Feb 2018, stored ready to ship. Requires 4-6SCFM @ 90# per 1 min cycle.
