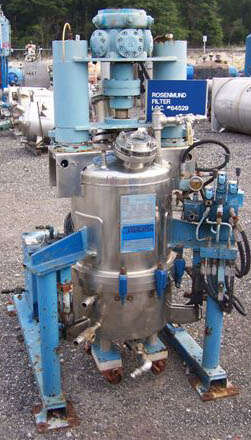

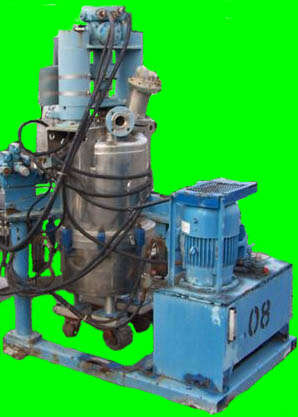

1270535 - FILTER, P-LEAF, 0.2SM, ROSENMUND, 0.2M, 316LSS-316LSS [SH-LF], V-H [SH-LF], DCD [1]

  • MFD.BY:Rosenmund
  • DATE MFD:1985 approx.
  • TYPE:Pressure leaf dryer/filter. Bottom filter leaf installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a manifold under the filter leaf after passing through the filter media.The s
  • MODEL:0.2M
  • SIZE-SHELL:20” diameter X 36” straight side, surface area 13.65 Sq. ft., 40 gallons.
  • ORIENTATION-SHELL:Vertical
  • PRESSURE-SHELL:90# @ 350Deg F.
  • MAT'L CONSTRN-SHELL:316LSS

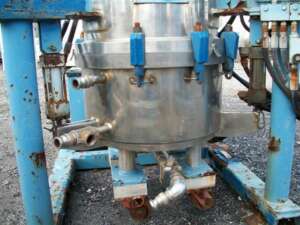

  • JACKET TYPE:304SS conventional
  • PRESSURE-JACKET:100# @ 350Deg F
  • LEAF ORIENTATION:Horizontal
  • LEAF-MEDIA:316LSS
  • MAT'L CONSTRN-LEAVES:316LSS. ~20" dia.
  • APPROX. FILTER AREA:2.2SF, 0.2SM
  • HEAD/SHELL CLOSURE:Flanged & Bolted top dished head. Various nozzles
  • DISCHARGE TYPE:DCD. Dry cake discharge w/5HP Hydraulic drive, approx. 5-25rpm. Hydraulic lift and lower head. Side discharge.

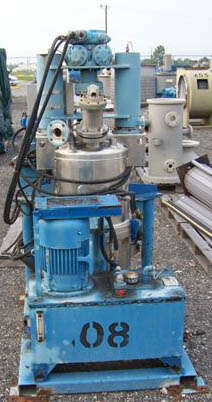

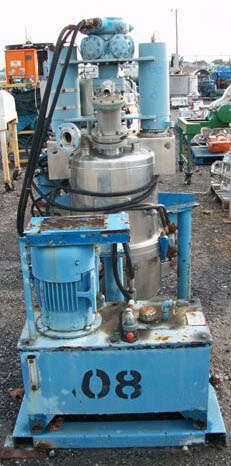

  • COMMENTS:Includes Hydraulic power pack and controls. Centrifugal dryer/filter. On legs.
  • SHIPPING SIZE-W X H X L:3'W X 5'H X 5'L
  • APPROX. WEIGHT-LBS:4000#
