1270563 - FILTER, P-LEAF, 20SF, SPARKLER, 18D12, 316SS-316SS [SH-LF], V-H [SH-LF], DCD [1]

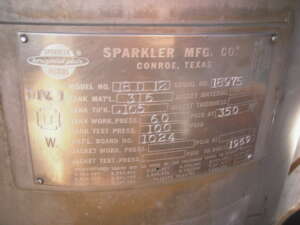

  • MFD.BY:Sparkler Filters, Conroe, TX
  • DATE MFD:1969
  • TYPE:Pressure leaf filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after passing through the filte
  • MODEL:18-D-12
  • SIZE-SHELL:18" dia. x 36" deep.approx.
  • ORIENTATION-SHELL:Vert.
  • PRESSURE-SHELL:60#MAWP @ 350°F. Hyd. 100# ASME. NBd
  • MAT'L CONSTRN-SHELL:316SS
  • JACKET TYPE:NA
  • PRESSURE-JACKET:NA
  • LEAF-TYPE/SPACING:Stationary, deep style
  • LEAF ORIENTATION:Horiz.
  • LEAF-MEDIA:Paper
  • MAT'L CONSTRN-LEAVES:316SS
  • APPROX. FILTER AREA:19.32 SF filter area, 2.328 CF cake approx
  • HEAD/SHELL CLOSURE:Quick-Lock with swing bolts
  • DISCHARGE TYPE:Dry cake Discharge. Manual

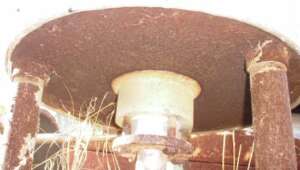

  • COMMENTS:Scavenger plate. Mounted on 3 legs w/12" ground clearance. Connections: 1" side inlet, 1½" c.b.o., ½" jkt drain, bottom. Top head vent, pressure guage connection.
  • SHIPPING SIZE-W X H X L:2'W X 2'H X 5'L
  • APPROX. WEIGHT-LBS:1200#
