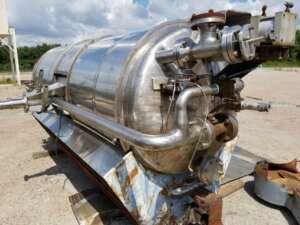

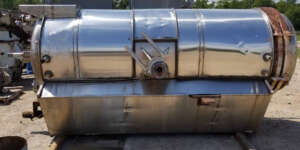

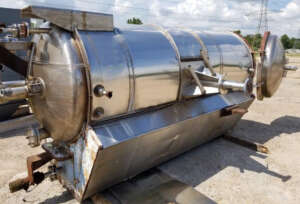

TYPE:Pressure leaf filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after passing through the filter
LEAF-TYPE/SPACING:41.5'' dia, NAFCO Mdl 42T assembly. Chamber 16ga wire weave, 0.063'' open. 'Neva Clog' Gr II 60micron [24 X 110] wire cloth media. 'H' section clamp perimeter retaining ring. Stationary, 3 Deg taper upward in filter cycle. 3" spacing
LEAF ORIENTATION:Horizontal [filter cycle]
LEAF-MEDIA:304LSS
MAT'L CONSTRN-LEAVES:304LSS
APPROX. FILTER AREA:350SF
HEAD/SHELL CLOSURE:Dished head, flanged and hinged at one end for maintenance.
DISCHARGE TYPE:DCD. Shaker/Pneumatic cylinder, 6" bore to release cake from leaves when vessel in horixontal position. 3/4HP Hydraulically driven 9"dia internal discharge screw LH/RH pitch flites for center discharge in troughed shell bottom.
PRIOR SVC:Zinc Oxide. Chemicals.
COMMENTS:Operates in Vertical position for precoat and filter cycle, rotates to horizontal to discharge. Filter pivoting support CS frame missing. 5HP power pack & hydraulic tilt cylinder missing. Leaves missing. Dwgs available for refurbishment. Connections: 4",
