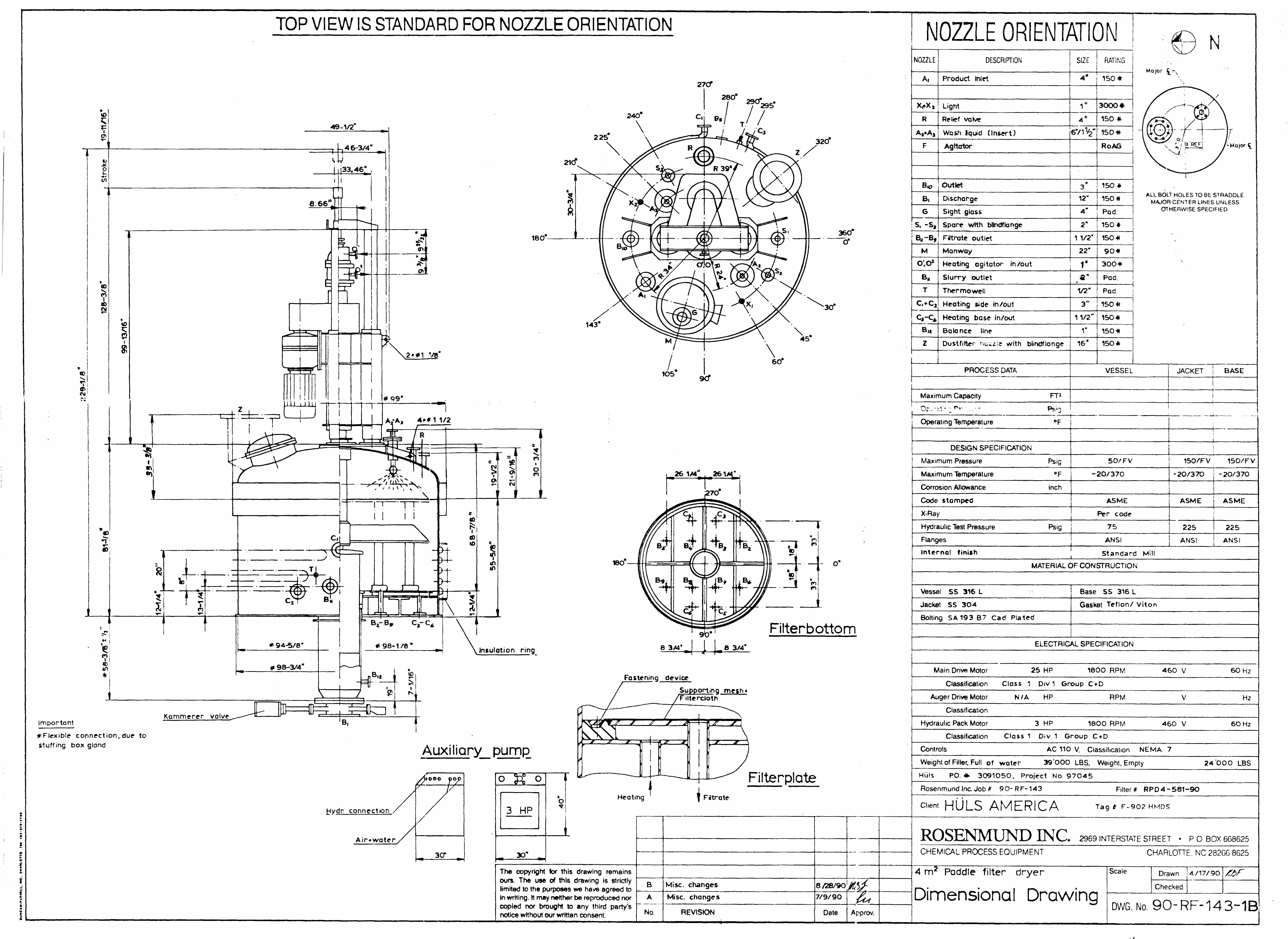

1269266 - FILTER, P-LEAF, 43SF, ROSENMUND, 4M, 316LSS-316LSS [SH-LF], V-H [SH-LF], DCD [1]

  • MFD.BY:Rosenmund. Vessel by Gaston County Dyeing Machine Co.
  • DATE MFD:1990

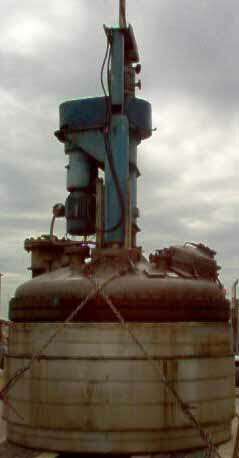

  • TYPE:Pressure leaf filter. Dryer/filter. Filter leaf installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a manifold connecting the filter leaf after passing through the filter media
  • MODEL:4M
  • SIZE-SHELL:7'dia. X 4'Deep
  • ORIENTATION-SHELL:Vertical
  • PRESSURE-SHELL:50#FV @ -20/+370deg F MAWP/MDT. ASME NB
  • MAT'L CONSTRN-SHELL:316LSS. 3/8" thick shell, 0.46875" head .

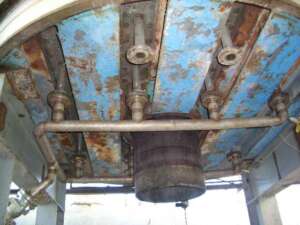

  • JACKET TYPE:1/2 pipe coil on side wall, SS
  • PRESSURE-JACKET:150#FV @ 370deg F MAWP/MDT. ASME NB

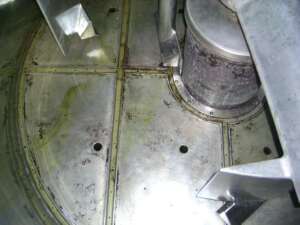

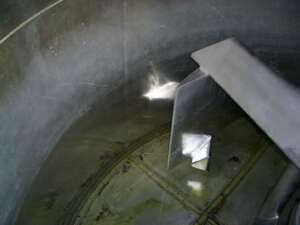

  • LEAF-TYPE/SPACING:Perforated Segmented type. 7'dia. Approx.
  • LEAF ORIENTATION:Horizontal
  • LEAF-MEDIA:Sintered 316LSS
  • MAT'L CONSTRN-LEAVES:316LSS
  • APPROX. FILTER AREA:43.04 Sq.Ft., 4.0Sq.Meter

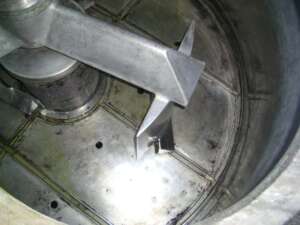

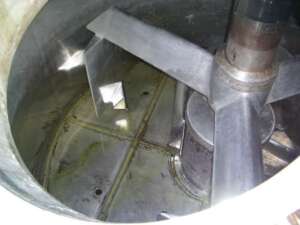

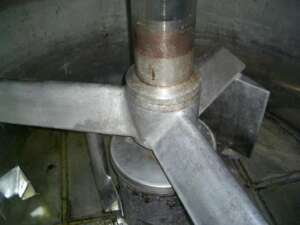

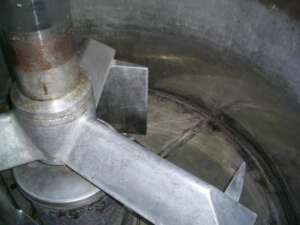

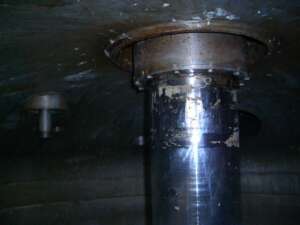

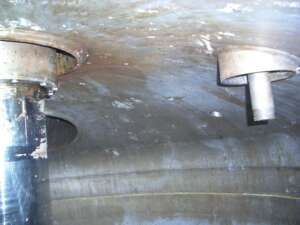

  • HEAD/SHELL CLOSURE:Hydraulically opening flanged top dished head. Hydraulically driven agitator, mounted on top head.

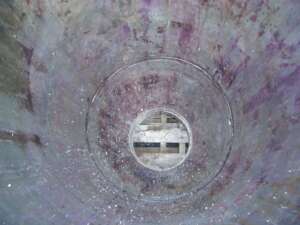

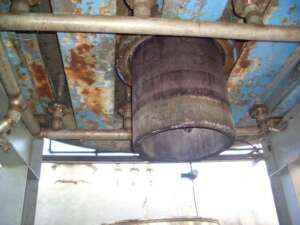

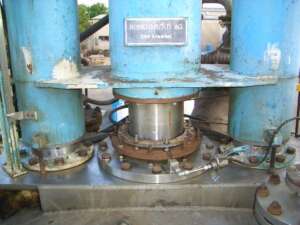

  • DISCHARGE TYPE:DCD. Dry cake discharge w/Hydraulic drive, approx. 125rpm. Bottom center discharge.
  • COMMENTS:Installed. Dryer/filter. Center discharge, 10" dia.. Heated Agitator, heated bottom filter plate. Complete w/controls and hydraulic pack system new in 2002. Hydraulic raise / lower mechanism. Agitator varispeed approx. 30RPM. Top connections:20"MH, 12", 6
  • SHIPPING SIZE-W X H X L:8'W X 10'H X 8'L
  • APPROX. WEIGHT-LBS:8000#
