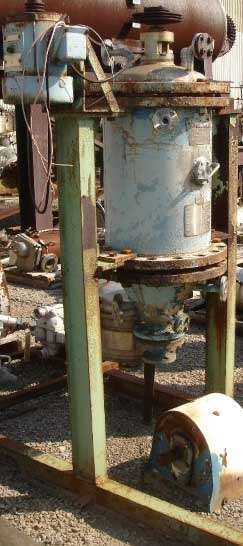

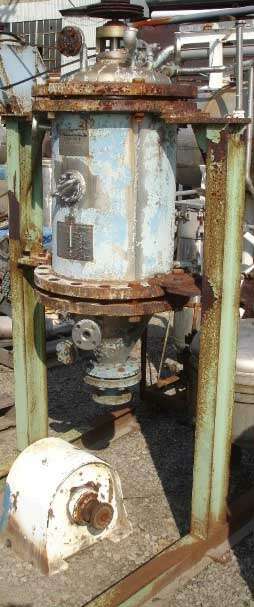

0937000 - FILTER, P-LEAF, 5.375SF, FUNDA, LO.5, SS-SS [SH-LF], V-H [SH-LF], WCD [1]

  • MFD.BY:Funda
  • TYPE:Pressure leaf filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after passing through the filte
  • MODEL:LO.5, lab size.
  • ORIENTATION-SHELL:Vertical
  • PRESSURE-SHELL:175 psi
  • MAT'L CONSTRN-SHELL:SS
  • LEAF ORIENTATION:Horizontal
  • MAT'L CONSTRN-LEAVES:SS
  • APPROX. FILTER AREA:5.375 sq.ft. (.5 sq. meters) max.
  • DISCHARGE TYPE:WCD Wet cake discharge. Slurry discharge.
  • COMMENTS:Jacketed tank.nComplete with drive, on stand.
  • SHIPPING SIZE-W X H X L:3'W X 3'H X 6'L
  • APPROX. WEIGHT-LBS:600#
