1267624 - FILTER, P-LEAF, 532SF, SCHENK, ZHF-SR40KLK, SS-SS [SH-LF], V-H [SH-LF], DCD [2]

  • MFD.BY:Schenk Filterbau GMBH; Schwabisch GMNNG
  • TYPE:Pressure leaf filter. Centrifugal dryer/filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after
  • MODEL:ZHF-SR40KLK Size 50

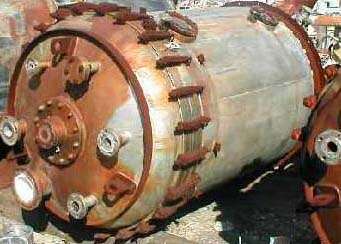

  • SIZE-SHELL:54"dia. X 60"s-s , 846 gall.
  • ORIENTATION-SHELL:Vertical. 3 legs
  • PRESSURE-SHELL:105# @ 370°F
  • MAT'L CONSTRN-SHELL:304SS
  • JACKET TYPE:NA
  • PRESSURE-JACKET:NA

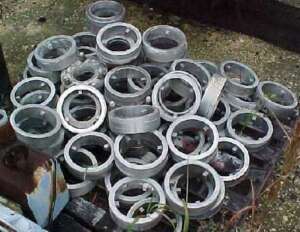

  • LEAF-TYPE/SPACING:2" approx.
  • LEAF ORIENTATION:Horizontal
  • LEAF-MEDIA:Poly. Cloth
  • MAT'L CONSTRN-LEAVES:304SS
  • APPROX. FILTER AREA:532 SF/50SM. approx.

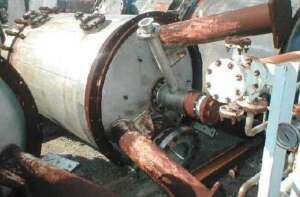

  • HEAD/SHELL CLOSURE:Flanged and bolted

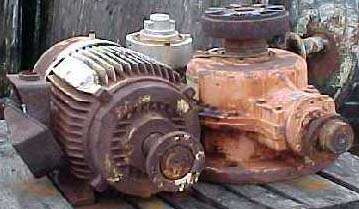

  • DISCHARGE TYPE:WCD/DCD. Wet or dry cake discharge possible. Centrifugal dry cake discharge w/approx. 60HP, approx. 90rpm leaf speed.
  • COMMENTS:Centrifugal cake discharge. On 3 S.S. pipe legs. Cake capacity is approximately 41 cu.ft. Spare shaft .
  • SHIPPING SIZE-W X H X L:6'W X 6'H X 20'L
  • APPROX. WEIGHT-LBS:20000#
