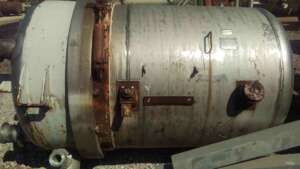

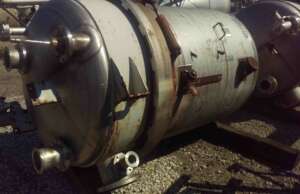

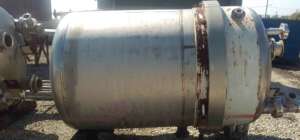

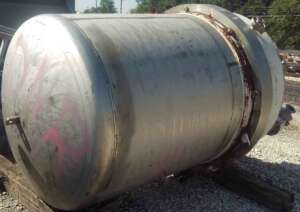

1271496 - FILTER, P-LEAF, 550SF, DURCO, 60HC550, 304LSS-304LSS [SH-LF], H-V [SH-LF], W&DCD [2]

  • MFD.BY:Durco Enzinger
  • DATE MFD:1975
  • TYPE:Pressure leaf filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after passing through the filte

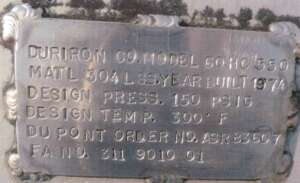

  • MODEL:60HC-550
  • SIZE-SHELL:60" dia X 5'6'' long approx.
  • ORIENTATION-SHELL:Horizontal

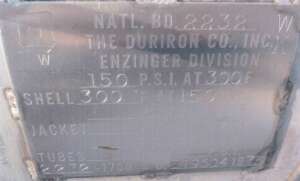

  • PRESSURE-SHELL:DP150# @ 300°F, ASME, N.Bd.
  • MAT'L CONSTRN-SHELL:304LSS 3/8" thick shell. 7/16" heads approx.
  • JACKET TYPE:NA
  • PRESSURE-JACKET:NA
  • LEAF-TYPE/SPACING:48"wide, rectangular. Stationary. 2-1/2" spacing
  • LEAF ORIENTATION:Vertical
  • MAT'L CONSTRN-LEAVES:304LSS frame, 2-1/2" wide 18Ga. Typical. Outlet nozzle cast 304LSS w/ O-ring.
  • APPROX. FILTER AREA:550SF [~30 CF cake capacity]
  • HEAD/SHELL CLOSURE:Quick open w/hydraulic operated cam lock ring. Viton or similar seal gasket.
  • DISCHARGE TYPE:WCD or DCD. Internal dual sluice headers for WCD or retractable door with leaves on manifold exposing cake for manual dry discharge.

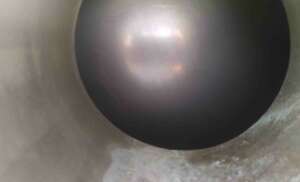

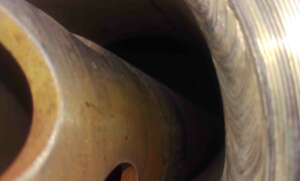

  • COMMENTS:Shell stationary w/leaves and manifold. Head manually retracts on trolley wheels. Internal shell welds originally ground smooth. HRAP std.. Tank approx. 1,200galls capacity. 30 Cu ft. cake capacity w/1" thick cake approx. Overall length open 17' [support
  • SHIPPING SIZE-W X H X L:6'W X 6'H X 10'L
  • APPROX. WEIGHT-LBS:4500#
