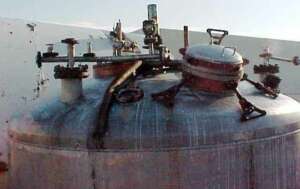

0954700 - FILTER, P-LEAF, 77SF, DURCO, NUTSCHE, 316SS-316SS [SH-LF], V-H [SH-LF], DCD [1]

  • MFD.BY:Durco. Duriron/Enzinger Div.
  • DATE MFD:1965
  • TYPE:Pressure leaf filter. Series of filter leaves installed inside a pressure vessel into which an unfiltered liquid slurry is fed under pressure.The mother liquor is drawn off via a common manifold connecting the filter leaves after passing through the filte
  • MODEL:Nutsche (Like Rosenmund).
  • SIZE-SHELL:120” dia x 3’4” deep.
  • ORIENTATION-SHELL:Vertical
  • PRESSURE-SHELL:75# @ 150°F.
  • MAT'L CONSTRN-SHELL:316SS
  • JACKET TYPE:NA
  • PRESSURE-JACKET:NA
  • LEAF-TYPE/SPACING:Segmented
  • LEAF ORIENTATION:Horizontal
  • LEAF-MEDIA:Metallic
  • MAT'L CONSTRN-LEAVES:316SS
  • APPROX. FILTER AREA:77 SF
  • HEAD/SHELL CLOSURE:Dished, fixed top.
  • DISCHARGE TYPE:Dry cake discharge.
  • COMMENTS:316L agitator, 6 rpm, reversible w/2 HP hydraulic pump. Vevay 7½ HP hydraulic pump to raise and lower drive.
  • SHIPPING SIZE-W X H X L:10'6''W X 8'H X 10'6''L
  • APPROX. WEIGHT-LBS:8000#
