- MFD.BY:Durco
- DATE MFD:1995 approx.

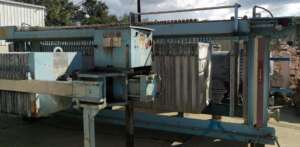

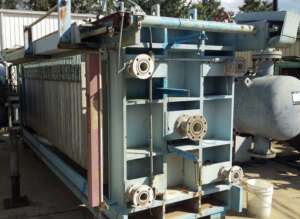

- TYPE:Recessed plate filter
- MODEL:QP-1200/32-47 [tbc]
- PLATE-SIZE:1200 MM
- PLATE-TYPE:Recessed
- PLATE-STYLE:5 eye, 4-corner discharge, center feed.
- PLATE-RECESS:32 MM cake thickness approx..
- MAT'L CONSTRN-PLATES:Polypropylene
- MAT'L -CLOTH MEDIA:Polypropylene
- APPROX.FILTER VOLUME:70CF cake capacity.
- PLATE SHIFTER:Yes. Top mounted & hung plates. Shifter Semi-automatic operation, auto shift.
- CLOSURE TYPE:Double acting hydraulic cylinder w/Electro hydraulic low pressure primary closure pump & electro hydraulic high pressure closure pump. Hydraulic fluid surge tank with cooler, filter and piping.
- CLOSURE PRESSURE:3000# approx.
- FILTERING PRESSURE:100# approx.
- PRIOR SVC:Chemicals or waste water

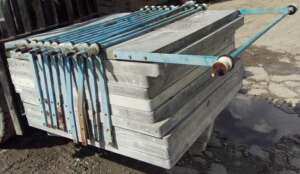

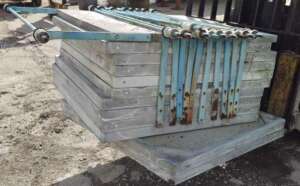

- COMMENTS:Approx. 48 plates/47 chambers. Side mounted Shadow IV light curtain, safety cut off. CircuitPak electro-hydraulic pump. 8 bolt pattern 3" PVC flanged connections.
- SHIPPING SIZE-W X H X L:8'W X 8'H X 51'L
- APPROX. WEIGHT-LBS:30000#
