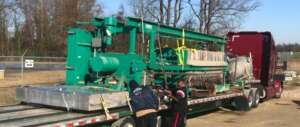

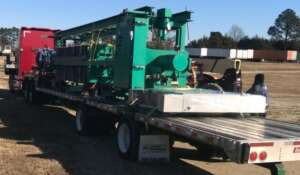

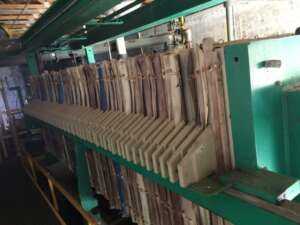

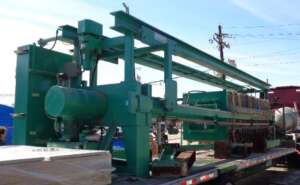

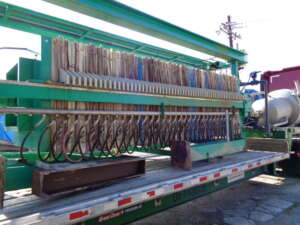

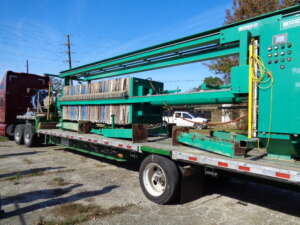

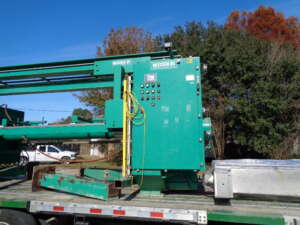

TYPE:Plate and frame filter press, Membrane Flush type plate pack. Membrane and Flat/Flush standard plates are recessed on both sides, media cloth/paper is fitted between each pair of plates and product to be filtered is pumped through media into plate, which

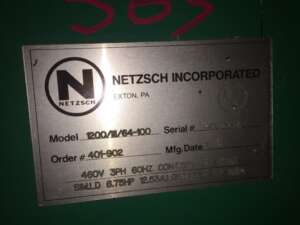

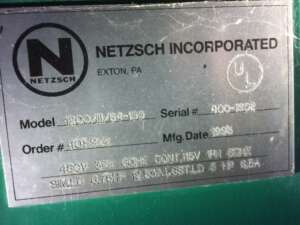

MODEL:1200/III/64-100
PLATE-SIZE:48" (1200mm x 1200mm)
PLATE-TYPE:Recessed Membrane plate & Flush plate, alternating for easy cake removal for difficult to filter or changing products. Cloth media envelope and edge seal.
PLATE-STYLE:5 eye, center feed, 4 corner discharge. Thickness tbd
PLATE-RECESS:25MM membrane plate recess. Flush plates are flat. 15-25MM cake thickness, pre vs post squeeze. [1.26" cake thickness with Regular recessed plates 32mm]
MAT'L CONSTRN-PLATES:Polypropylene
MAT'L -CLOTH MEDIA:Polypropylene
MAX. FILTER AREA:2080 SF
APPROX.FILTER VOLUME:60 CF with current membrane plates pack. Alternatively 80 CF [Standard Recesed plates]
