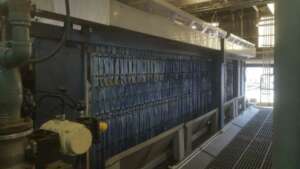

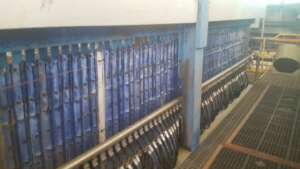

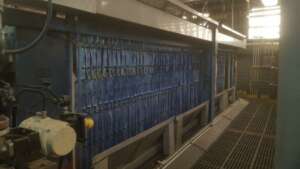

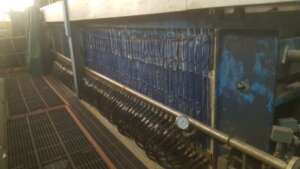

1272010 - FILTER, PLATE, 1200MM, POLY, 1463SF, 93.1CF, HYD, DURCO, MEMBRANE, SHIFTER [1]

  • MFD.BY:Durco
  • DATE MFD:1983
  • TYPE:Recessed plate filter
  • MODEL:QPM-1200/40-68 [-55 originally]
  • PLATE-SIZE:1200 MM

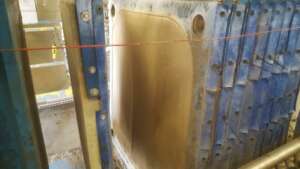

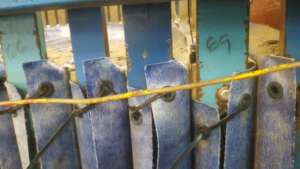

  • PLATE-TYPE:Recessed, Membrane type, Rubber diaphragm w/EPDM Grommets
  • PLATE-STYLE:5 eye, 4-corner discharge, center feed.
  • PLATE-RECESS:40 MM cake thickness approx..
  • MAT'L CONSTRN-PLATES:Polypropylene RAL 7032
  • MAT'L -CLOTH MEDIA:Polypropylene 42614-3-HS
  • APPROX.FILTER VOLUME:93.1CF cake capacity. [77.6CF originally. 1.41CF/Chamber]
  • PLATE SHIFTER:Yes. Top mounted & hung plates. Shifter Semi-automatic operation, auto shift.

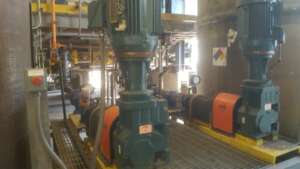

  • CLOSURE TYPE:Double acting hydraulic cylinder w/7.5HP 3/60/230-460V Electro hydraulic low pressure primary closure pump & electro hydraulic high pressure closure pump. Hydraulic fluid surge tank with cooler, filter and piping. Pneumatic booster pump SC-10-600-5 [SC Hy
  • CLOSURE PRESSURE:3925 psig
  • FILTERING PRESSURE:100# feed, 225# squeeze
  • PRIOR SVC:Chemicals or waste water
  • COMMENTS:68 chambers. 66 Membrane Intermediate plates, 1 Head Plate, 1 End Plate. 225# membrane pressure. Automatic core blow [air]. Plates top rail supported.nIncludes double acting electro/hydraulic power pak, control panel for automatic operation, automatic p
  • SHIPPING SIZE-W X H X L:6'W X 8'H X 24'L
  • APPROX. WEIGHT-LBS:30000#
