1272007 - FILTER, PLATE, 1200MM, POLY, 1592SF, 94CF, HYD, NETZSCH, MEMBRANE, SHIFTER [1]

  • MFD.BY:Netzsch Inc., Exton, PA
  • DATE MFD:1991

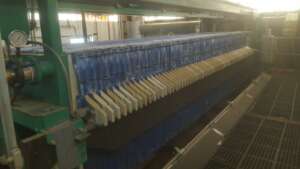

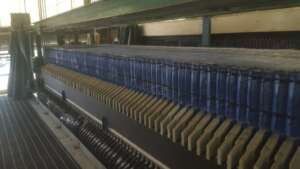

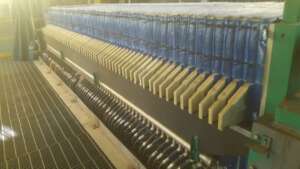

  • TYPE:Plate and frame filter press, Membrane type plate pack. Membrane plates are recessed on both sides, media cloth/paper is fitted between each pair of plates and product to be filtered is pumped through media into plate, which has an integral drainage grid
  • MODEL:1200/SP
  • PLATE-SIZE:48" (1200mm x 1200mm)

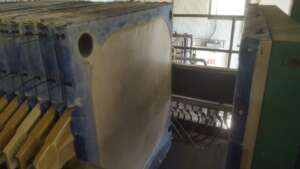

  • PLATE-TYPE:Recessed Membrane plate. Cloth media envelope and edge seal.

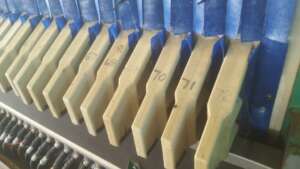

  • PLATE-STYLE:5 eye, center feed, 4 corner discharge.
  • PLATE-RECESS:25MM membrane plate recess. 32MM cake thickness post squeeze.
  • MAT'L CONSTRN-PLATES:Polypropylene
  • MAT'L -CLOTH MEDIA:Polypropylene
  • APPROX.FILTER VOLUME:94CF pre-squeeze
  • PLATE SHIFTER:Overhead, electromechanical
  • CLOSURE TYPE:Electro-Hydraulic, double acting hydraulic ram, w/5hp 3/60/230-460v electro-hydraulic powerpack and controls
  • CLOSURE PRESSURE:5600# 385bar.
  • FILTERING PRESSURE:100# normal. 225# membrane squeeze
  • PRIOR SVC:Waste Water sludge. Chemical duty.
  • COMMENTS:74 chambers. 73 Membrane Intermediate plates, 1 Head Plate, 1 End Plate. 225# membrane pressure. Automatic core blow [air]. Plates side rail supported.nIncludes double acting electro/hydraulic power pak, control panel for automatic operation, automatic
  • SHIPPING SIZE-W X H X L:7'W X 8'H X 30'L
  • APPROX. WEIGHT-LBS:33500#
